0.05uF 30kV High Voltage Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.05uF,0.05MFD,50nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 30kV,300000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

0.05uF 30kV High Voltage Capacitor Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 10 Piece

0.05uF 30kV High Voltage Capacitor Product Specifications

Capacitance 0.05uF,0.05MFD,50nF
Temperature Range -10~+40 Celsius (oC)
Application General Purpose, Power, High Voltage
Operating Temperature -10~+40 Celsius (oC)
Frequency 1 Hertz (HZ)
Capacitance Tolerance +/-10% Microfarad (F)
Terminal Single-Ended
Current DC
Product Type Polypropylene Film Capacitor
Rated Voltage 30kV,300000 Volt (V)

0.05uF 30kV High Voltage Capacitor Trade Information

FOB Port Shanghai
Payment Terms Paypal, Western Union, Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Packaging Details 5PCS/CTN
Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Central America, Asia, Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 30KV 0.05uF(50nF)
Specifications
Capacitance	0.05uF/0.05MFD/50nF
Rated Voltage	30kV/30000V.DC
Capacitance Tolerance	5%,10%
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+40 C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11019
Case Style	Single-Ended Plastic Casee
Dimensions	L:152mm W:58mm H:235mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

0.32uF 40kV HV Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance : 0.32uF,0.32MFD,320nF Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 40kV,400000 Volt (V) Product Type : Polypropylene Film Capacitor Temperature Range : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Terminal : SingleEnded Current : DC

Send Inquiry

0.3uF 40kV HV Pulse Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance : 0.3uF,0.3MFD,300nF Application : General Purpose, High Voltage, Power Operating Temperature : 10~+40 Celsius (oC) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 40kV,400000 Volt (V) Product Type : Polypropylene Film Capacitor Temperature Range : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Terminal : SingleEnded Current : DC

Send Inquiry

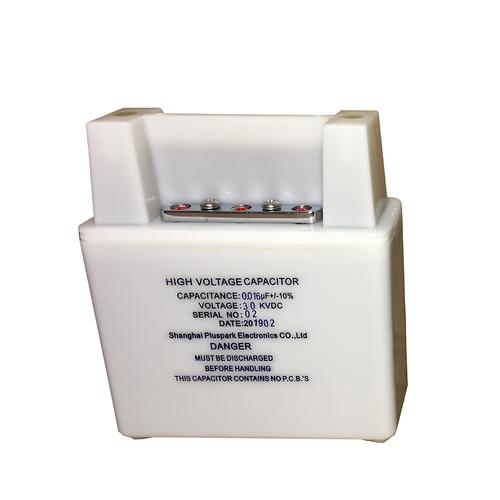

30kv 0.016uf High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Capacitance : 0.016uF,0.016MFD,16nF Application : General Purpose, High Voltage, Power Operating Temperature : 10~+40 Celsius (oC) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 30000 Volt (V) Product Type : Polypropylene Film Capacitor Frequency : 1 Hertz (HZ) Terminal : SingleEnded Current : DC
