0.32uF 30kV High Voltage Pulse Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.32uF,0.32MFD,320nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 30kV,300000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

0.32uF 30kV High Voltage Pulse Capacitor Price And Quantity

Minimum Order Quantity 10 Piece
Price 1-1.2 USD ($)/Piece

0.32uF 30kV High Voltage Pulse Capacitor Product Specifications

Application General Purpose High Voltage Microwave
Rated Voltage 30kV,300000 Volt (V)
Temperature Range -10~+40 Celsius (oC)
Current DC
Operating Temperature -10~+40 Celsius (oC)
Product Type Polypropylene Film Capacitor
Capacitance 0.32uF,0.32MFD,320nF
Terminal Single-Ended
Capacitance Tolerance +/-10% Microfarad (F)

0.32uF 30kV High Voltage Pulse Capacitor Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Paypal Western Union
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5pcs/CTN
Main Export Market(s) Western Europe North America South America Eastern Europe Middle East Central America Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 30KV 0.32uF(320nF)
Specifications
Capacitance	0.32uF/0.32MFD/320nF
Rated Voltage	30kV/30000V.DC
Capacitance Tolerance	5%,10%
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+40 C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11025
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:275mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

50kV 0.44uF HV Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Product Type : Polypropylene Film Capacitor Capacitance : 0.44uF,0.44MFD,440nF Application : General Purpose, High Voltage, Power Rated Voltage : 50kV,500000 Volt (V) Frequency : 1 Hertz (HZ) Temperature Range : 10~+40 Celsius (oC) Current : DC Terminal : SingleEnded

Send Inquiry

0.1uF 80kV High Voltage Pulse Capacitor Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Product Type : Polypropylene Film Capacitor Capacitance : 0.1uF,0.1MFD,100nF Application : General Purpose, High Voltage, Power Rated Voltage : 80kV,800000 Volt (V) Frequency : 1 Hertz (HZ) Temperature Range : 10~+40 Celsius (oC) Current : DC Terminal : SingleEnded

Send Inquiry

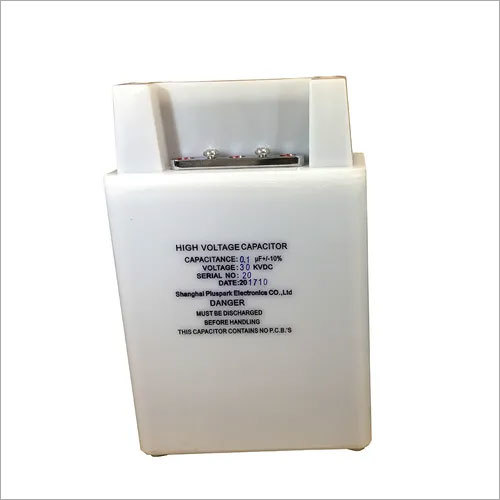

100nf 30kv High Voltage Pulse Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Capacitance Tolerance : +/10%,+/5% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Product Type : Polypropylene Film Capacitor Capacitance : 100nF,0.1uF,0.1MFD Application : General Purpose, High Voltage, Power Rated Voltage : 30000 Volt (V) Frequency : 1 Hertz (HZ) Terminal : Single Ended
