1pps 20kv 0.13uf Pulse High Voltage Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Frequency 1 Hertz (HZ)
Current DC
Product Type Polypropylene Film Capacitor
Material Film
Capacitance 0.13uF,0.13MFD,130nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 20000 Volt (V)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

1pps 20kv 0.13uf Pulse High Voltage Capacitor Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 20 Piece

1pps 20kv 0.13uf Pulse High Voltage Capacitor Product Specifications

Application General Purpose High Voltage Power
Terminal Single-Ended
Capacitance 0.13uF,0.13MFD,130nF
Capacitance Tolerance +/-10% Microfarad (F)
Frequency 1 Hertz (HZ)
Rated Voltage 20000 Volt (V)
Operating Temperature -10~+40 Celsius (oC)
Material Film
Product Type Polypropylene Film Capacitor
Current DC

1pps 20kv 0.13uf Pulse High Voltage Capacitor Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Western Union Paypal
Supply Ability 200 Piece Per Week
Delivery Time Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Australia Central America North America South America Eastern Europe Western Europe Middle East Asia Africa
Main Domestic Market All India
Certifications ISO9001

Product Description

Manufacturer/Supplier	Shanghai Pluspark Electronics Co.,Ltd
Product	High voltage capacitor
Rated capacitance -in uF	0.13uF,0.13MFD
-in nF	130nF
Capacitance tolerance	+/-10% (K),
Rated voltage V_R	20Kv, 20000V.DC
Max. Continuous Rep Rate	1pps
Terminals	Single-ended, plastic case
Case size	58x152x235mm
Operating temperature range	-10degree C~+40 degree C
Max .peak current	25kA
Max RMS current	25A
Design life	100,000 charge/discharge cycles

Rating of 20kV Capacitor

Product category	High Voltage Capacitor
Item	Voltage	Capacitance-uF	Capacitance -nF
High Voltage Pulse Capacitor	20kV	0.1uF	100nF
	20kV	0.13uF	130nF
	20kV	0.2uF	200nF
	20kV	0.4uF	400nF
	20kV	0.6uF	600nF

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

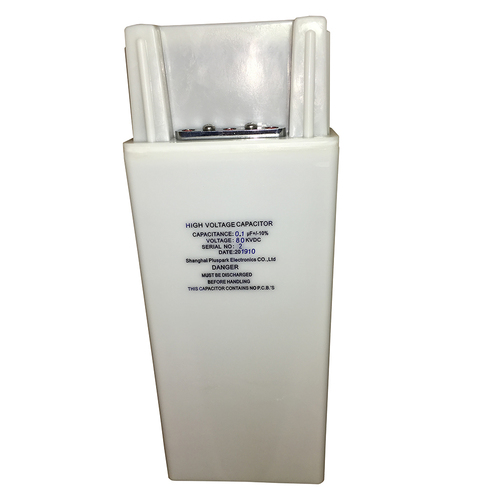

0.1uF 80kV High Voltage Pulse Capacitor Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 80kV,800000 Volt (V) Terminal : SingleEnded Application : General Purpose, High Voltage, Power Capacitance : 0.1uF,0.1MFD,100nF Operating Temperature : 10~+40 Celsius (oC) Current : DC Frequency : 1 Hertz (HZ) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

60kV 0.01uF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 60000 Volt (V) Terminal : Single Ended Application : General Purpose, High Voltage, Power Capacitance : 0.01uF,0.01MFD,10nF Operating Temperature : 10~+40 Celsius (oC) Current : DC Frequency : 1 Hertz (HZ) Material : Film

Send Inquiry

High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 100000 Volt (V) Terminal : SingleEnded Application : High Voltage, Power, General Purpose Capacitance : 0.01uF,0.01MFD,10nF Operating Temperature : 10~+40 Celsius (oC) Current : DC Frequency : 1 Hertz (HZ) Material : Film

Send Inquiry

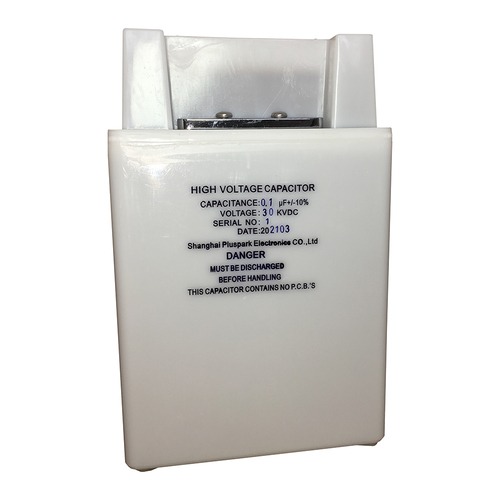

0.1uF 30kV High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 30kV,300000 Volt (V) Terminal : SingleEnded Application : High Voltage, Power, General Purpose Capacitance : 0.1uF,0.1MFD,100nF Operating Temperature : 10~+40 Celsius (oC) Current : DC Frequency : 1 Hertz (HZ) Temperature Range : 10~+40 Celsius (oC)
