25kV 1000nF Pulse Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Material Film
Capacitance 1uF,1MFD,1000nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 25000 Volt (V)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

25kV 1000nF Pulse Capacitor Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 20 Piece

25kV 1000nF Pulse Capacitor Product Specifications

Material Film
Product Type Polypropylene Film Capacitor
Frequency 1 Hertz (HZ)
Current DC
Terminal Single-Ended
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 25000 Volt (V)
Capacitance 1uF,1MFD,1000nF
Capacitance Tolerance +/-10% Microfarad (F)
Application General Purpose Power High Voltage

25kV 1000nF Pulse Capacitor Trade Information

FOB Port Shanghai
Payment Terms Western Union Paypal Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time Week
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Australia Western Europe Middle East Central America South America Asia Eastern Europe North America Africa
Main Domestic Market All India
Certifications ISO9001

Product Description

Manufacturer/Supplier	Shanghai Pluspark Electronics Co.,Ltd
Product	High voltage capacitor
Rated capacitance -in uF	1uF,1MFD
-in nF	1000nF
Capacitance tolerance	+/-10% (K),
Rated voltage V_R	25Kv, 25000V.DC
Max. Continuous Rep Rate	1pps
Terminals	Single-ended, plastic case
Case size	62x155x405mm
Operating temperature range	-10degree C~+40 degree C
Max .peak current	25kA
Max RMS current	25A
Design life	100,000 charge/discharge cycles

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

100nf 50kv Condensador High Voltage Capacitor Price Range : 1.00 - 5.00 USD ($)/Piece Minimum Order Quantity : 20 Application : General Purpose, High Voltage, Power Capacitance : 0.1uF,0.1MFD,100nF Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 50kV Volt (V) Operating Temperature : 10 to +40 Celsius (oC) Frequency : 1 Hertz (HZ) Product Type : Polypropylene Film Capacitor Terminal : SingleEnded Temperature Range : 10 to +40 Celsius (oC) Material : Film

Send Inquiry

100kV 0.01uF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : High Voltage, Power, General Purpose Capacitance : 0.01uF,0.01MFD,10nF Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 10kV,100000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Product Type : Polypropylene Film Capacitor Terminal : SingleEnded Temperature Range : 10~+40 Celsius (oC) Current : DC

Send Inquiry

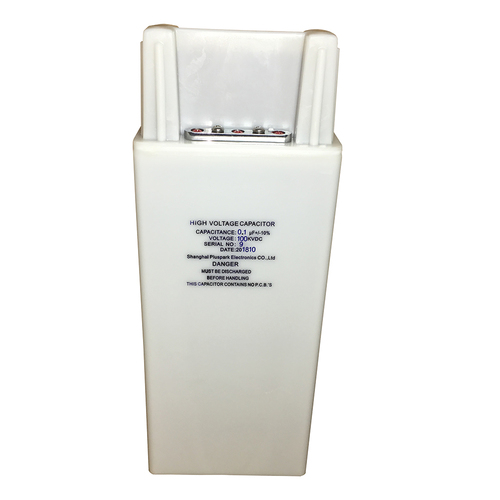

100kV 0.1uF HV Capacitor Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : General Purpose, High Voltage, Lighting Capacitance : 0.1uF,0.1MFD,100nF Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 100kV,1000000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Product Type : Polypropylene Film Capacitor Terminal : SingleEnded Temperature Range : 10~+40 Celsius (oC) Current : DC
