30kV 0.013uF High Voltage Pulse Discharge and DC Capacitor

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Material Film
Capacitance 0.013uF,0.013MFD,13nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 30000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

30kV 0.013uF High Voltage Pulse Discharge and DC Capacitor Price And Quantity

Minimum Order Quantity 20 Piece

30kV 0.013uF High Voltage Pulse Discharge and DC Capacitor Product Specifications

Rated Voltage 30000 Volt (V)
Current DC
Material Film
Application High Voltage Power General Purpose
Terminal Double-Ended
Capacitance 0.013uF,0.013MFD,13nF
Product Type Polypropylene Film Capacitor
Operating Temperature -10~+40 Celsius (oC)
Capacitance Tolerance +/-10% Microfarad (F)

30kV 0.013uF High Voltage Pulse Discharge and DC Capacitor Trade Information

FOB Port Shanghai
Payment Terms Paypal Western Union Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 10 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Australia North America South America Eastern Europe Middle East Western Europe Africa Central America Asia
Main Domestic Market All India
Certifications ISO9001

Product Description

High Voltage Pulse Discharge and DC Capacitor 30kV 0.013uF,HV Capacitor 30kV 13nF

Manufacturer/Supplier	Shanghai Pluspark Electronics Co.,Ltd
Product	High voltage capacitor
Rated capacitance -in uF	0.013uF, 0.013MFD
-in nF	13nF
Capacitance tolerance	+/-10% (K),
Rated voltage V_R	30Kv, 30000V
Terminals	Double-ended, plastic case
Case size	58x152x79mm
Operating temperature range	-10C-+40C
Desc	High Voltage Pulse Discharge and DC Capacitor 0.013UF 30KV

Rating of 30kV Capacitor:
Product category	High Voltage Capacitor
Item	Voltage	Capacitance-uF	Capacitance -nF
High Voltage Capacitor	30kV	0.01uF	10nF
	30kV	0.013uF	13nF
	30kV	0.022uF	22nF
	30kV	0.03uF	30nF
	30kV	0.05uF	50nF

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pulse Discharge And DC Capacitor' category

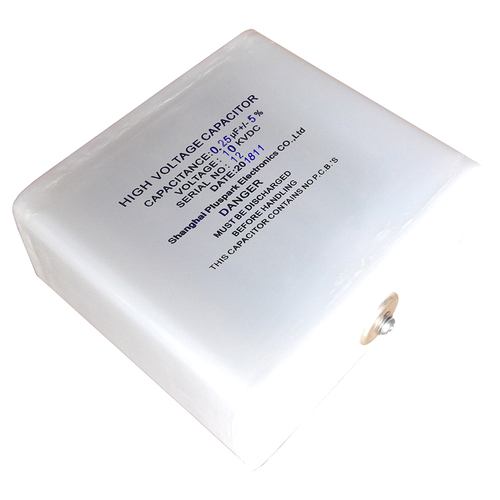

HV Pulse discharge and DC Capacitor 10kV 0.25uF(250nF) Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Operating Temperature : 10~+40 Celsius (oC) Product Type : Polypropylene Film Capacitor Capacitance : 0.25uF,0.25MFD,250nF Application : General Purpose, High Voltage, Power Current : DC Rated Voltage : 10kV,100000 Volt (V) Capacitance Tolerance : +/5% Microfarad (F) Terminal : Double Ended Famale Terminal are opposite ends Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

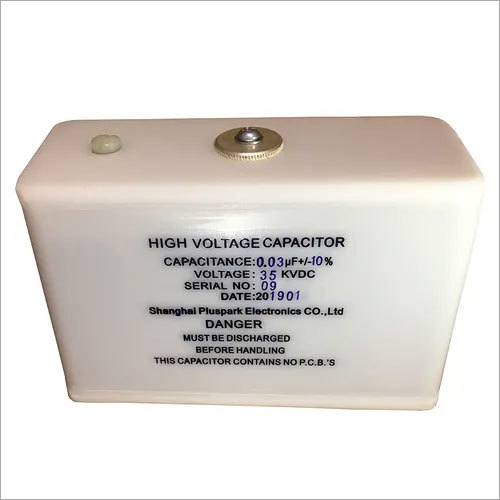

35kV 0.03uF High Voltage Capacitor HV Pulse Discharge and DC Capacitor Price Range : 1.00 - 2.00 USD ($)/Piece Minimum Order Quantity : 20 Operating Temperature : 10~+40 Celsius (oC) Product Type : Polypropylene Film Capacitor Capacitance : 0.03uF,0.03MFD,30nF Application : General Purpose, High Voltage, Power Current : DC Rated Voltage : 35000 Volt (V) Capacitance Tolerance : +/10% Microfarad (F) Terminal : DoubleEnded Material : Film

Send Inquiry

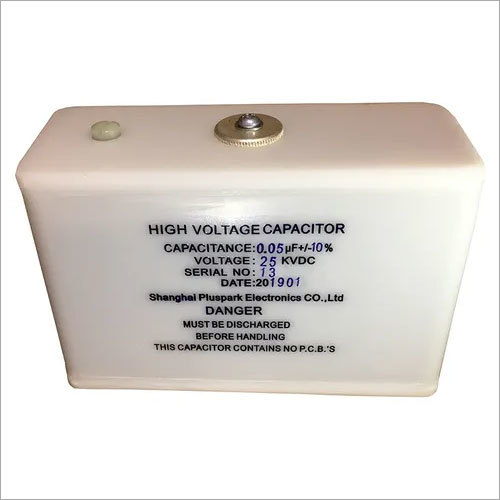

25kV 0.05uF High Voltage Capacitor Price Range : 1.00 - 5.00 USD ($)/Piece Minimum Order Quantity : 20 Operating Temperature : 10~+40 Celsius (oC) Product Type : Polypropylene Film Capacitor Capacitance : 0.05uF,0.05MFD,50nF Application : General Purpose, High Voltage, Power Current : DC Rated Voltage : 25000 Volt (V) Capacitance Tolerance : +/10% Microfarad (F) Terminal : DoubleEnded Material : Film

Send Inquiry

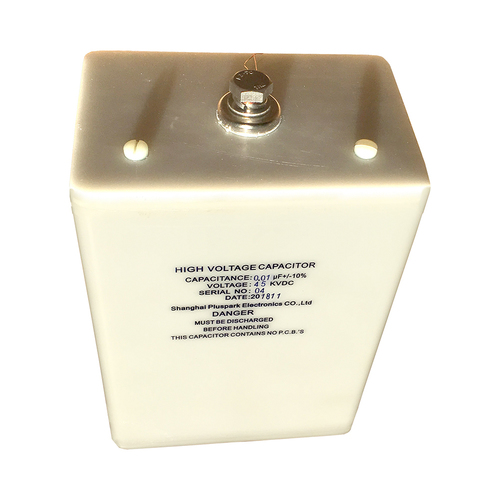

High Voltage Pulse Discharge and DC Capacitor 45kV 0.01uF(10nF) Minimum Order Quantity : 10 Operating Temperature : 10~+40 Celsius (oC) Product Type : Polypropylene Film Capacitor Capacitance : 0.01uF,0.01MFD,10nF Application : High Voltage, Power, General Purpose Current : DC Rated Voltage : 40kV,400000 Volt (V) Capacitance Tolerance : +/5% Microfarad (F) Terminal : Double Ended Famale Terminal are opposite ends Temperature Range : 10~+40 Celsius (oC)
