3uF 8kV HV Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Frequency 1 Hertz (HZ)
Current DC
Product Type Polypropylene Film Capacitor
Material Film
Capacitance 3uF,3MFD,3000nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 8kV,8000 Volt (V)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

3uF 8kV HV Capacitor Price And Quantity

Minimum Order Quantity 10 Piece
Price 1-1.2 USD ($)/Piece

3uF 8kV HV Capacitor Product Specifications

Terminal Single-Ended
Application General Purpose, High Voltage, Power
Capacitance Tolerance +/-10% Microfarad (F)
Capacitance 3uF,3MFD,3000nF
Frequency 1 Hertz (HZ)
Temperature Range -10~+40 Celsius (oC)
Product Type Polypropylene Film Capacitor
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 8kV,8000 Volt (V)
Current DC
Material Film

3uF 8kV HV Capacitor Trade Information

FOB Port Shanghai
Payment Terms Western Union, Paypal, Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 8-12 Week
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Western Europe, Australia, North America, South America, Middle East, Central America, Asia, Africa
Main Domestic Market All India

Product Description

HIGH VOLTAGE PULSE CAPACITOR 8KV 3uF(3000nF)
Specifications
Capacitance	3uF/3MFD/3000nF
Rated Voltage	8kV/8000V.DC
Capacitance Tolerance	10%
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+40 C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11001
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:285mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

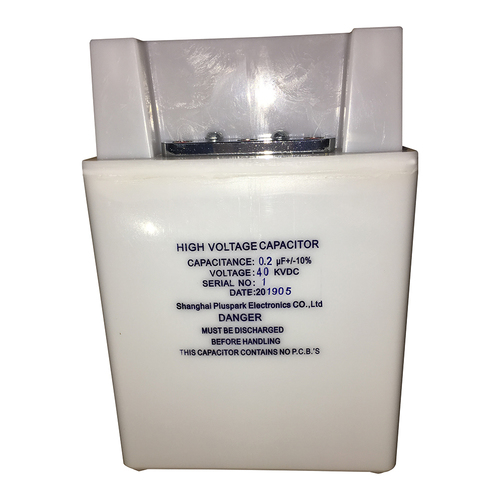

40kV 0.2uF HV Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Current : Other, High Pulse Discharge Capability Rated Voltage : 40kV DC Operating Temperature : 40C to +85C Application : Other, Impulse generator, pulse circuits, high voltage power supplies, test laboratories Capacitance Tolerance : 10% Frequency : 50/60Hz Product Type : Other, High Voltage Capacitor Capacitance : 0.2uF Temperature Range : 40C to +85C Terminal : High Voltage Bolt Terminal Material : Metallized Polypropylene Film
