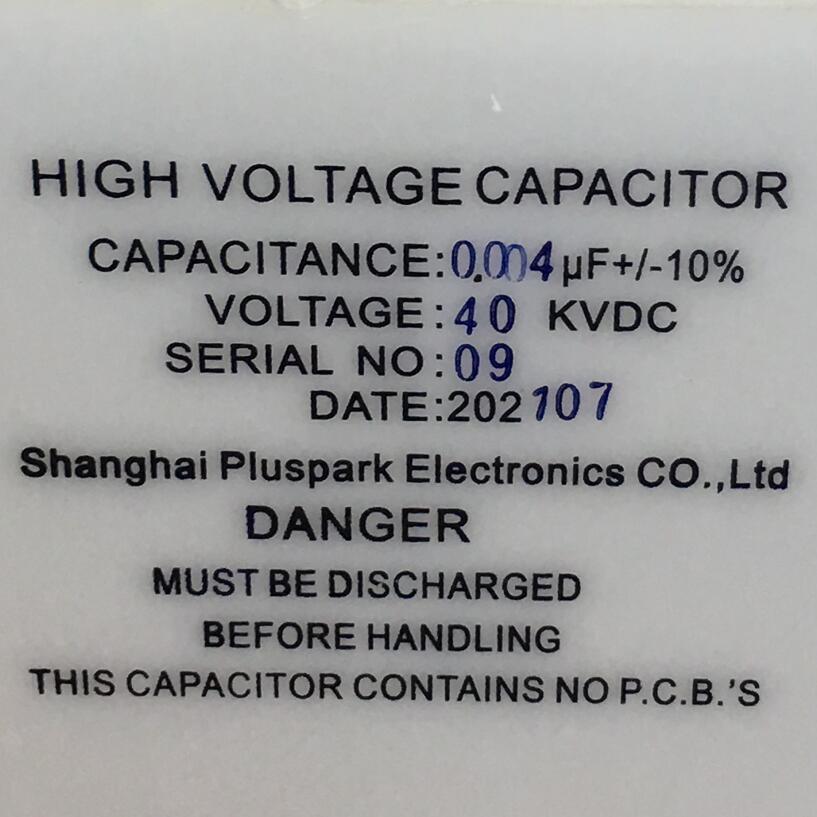

40kV HV Pulse Capacitor

20.00 - 199.00 USD ($)/Piece

Get a Price/Quote

Product Details:

Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 4nF,0.004uF,0.004MFD
Operating Temperature -10 to +45 Celsius (oC)
Rated Voltage 40000 Volt (V)
Capacitance Tolerance 5% 10% Microfarad (F)
Terminal Single-ended
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

40kV HV Pulse Capacitor Price And Quantity

Price Range 20.00 - 199.00 USD ($)/Piece
Minimum Order Quantity 10 Piece

40kV HV Pulse Capacitor Product Specifications

Size 58x152x170mm
Application High Voltage Power
Capacitance 4nF,0.004uF,0.004MFD
Rated Voltage 40000 Volt (V)
Capacitance Tolerance 5% 10% Microfarad (F)
Terminal Single-ended
Product Type Polypropylene Film Capacitor
Operating Temperature -10 to +45 Celsius (oC)
Frequency 1 Hertz (HZ)

40kV HV Pulse Capacitor Trade Information

Payment Terms Western Union Paypal Telegraphic Transfer (T/T)
Packaging Details 10Pcs/CTN
Certifications MSDS,RoHS,ISO9001:2015

Product Description

Family

Capacitance-in F				0.004F
-mircofarad	0.004MFD
-in nF	4nF
Rated Voltage (DC)	40.0kV_DC
	40000V
Capacitance Tolerance	+/-5%,10%
Max Rep -rate	1Hz
P/N.:	HV Capacitor PSE11090
Case size (MM)	Dimensions	Wideth	length	Height
		58	150	170
Rated voltage Reversal	20%
Max.voltage reversal	80%
Max.Peak Current	25kA
Max .RMS current	25A
Brand	Pluspark
Terminal	Single-ended
Case	Plastic case
Features	Low inductance
Application	High Voltage Pulse power supply,
Manufacturer/Supplier	Shanghai Pluspark Electronics Co.,Ltd

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

30kv 0.016uf High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Capacitance : 0.016uF,0.016MFD,16nF Rated Voltage : 30000 Volt (V) Terminal : SingleEnded Capacitance Tolerance : +/10% Microfarad (F) Product Type : Polypropylene Film Capacitor Current : DC Frequency : 1 Hertz (HZ) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, High Voltage, Power Material : Film

Send Inquiry

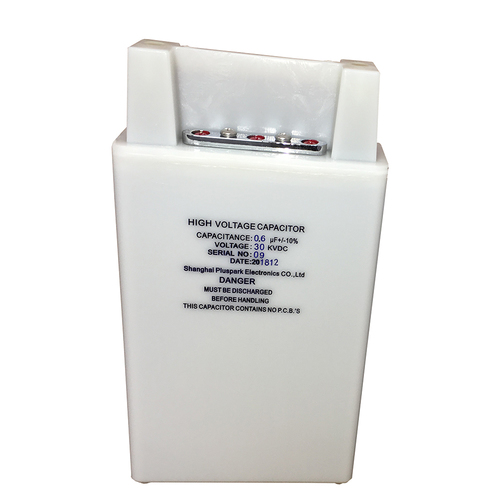

30kV 0.6uF HV Pulse Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance : 0.6uF,0.6MFD,600nF Rated Voltage : 30kV,300000 Volt (V) Terminal : SingleEnded Capacitance Tolerance : +/10% Microfarad (F) Product Type : Polypropylene Film Capacitor Current : DC Frequency : 1 Hertz (HZ) Operating Temperature : 10~+40 Celsius (oC) Application : High Voltage, Power, General Purpose Temperature Range : 10~+40 Celsius (oC)
