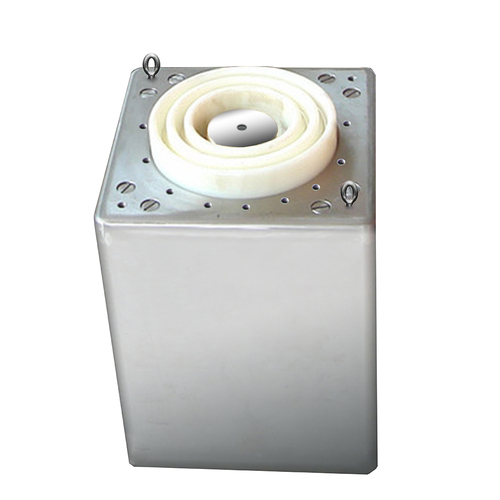

Energy Storage High Voltage Capacitor 10kV 500uF/500000nF

Get a Price/Quote

Product Details:

Insulation Voltage 12 kVDC
Loss Tangent 0.0015 at 1 kHz
Insulation Resistance 5000 M
Lead Spacing Not applicable (Screw Terminal)
Frequency 50/60 Hz
Current High Surge Current Capable
Breakdown Voltage >12 kV
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Energy Storage High Voltage Capacitor 10kV 500uF/500000nF Price And Quantity

Minimum Order Quantity 10 Piece

Energy Storage High Voltage Capacitor 10kV 500uF/500000nF Product Specifications

Breakdown Voltage >12 kV
Shell Metal Cylinder
Capacitance Tolerance 10%
Insulation Resistance 5000 M
Ripple Low ripple under rated conditions
Color Silver
Shape Cylindrical
Loss Tangent 0.0015 at 1 kHz
Product Type High Voltage Energy Storage Capacitor
Capacitance 500 F (500000 nF)
Frequency 50/60 Hz
Insulation Voltage 12 kVDC
Current High Surge Current Capable
Rated Voltage 10 kV (10,000 V)
Temperature Range -25C ~ +70C
Material Metallized Polypropylene Film
Application Pulse Power, Energy Storage, Medical, Industrial Equipment
Terminal High Voltage Screw Terminal
Size Customized/Varies (Typically Large Cylindrical)
Lead Spacing Not applicable (Screw Terminal)
Operating Temperature -25C to +70C

Energy Storage High Voltage Capacitor 10kV 500uF/500000nF Trade Information

FOB Port Shanghai
Payment Terms Letter of Credit (L/C), Western Union, Paypal
Supply Ability 200 Piece Per Week
Delivery Time 30 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details CTN
Main Export Market(s) North America, Eastern Europe, Western Europe
Main Domestic Market All India
Certifications ISO9001

Product Description

Energy Storage High Voltage Capacitor 10kV 200uF 200000nF
Rated Voltage	10kV or 10000V.DC
Nominal Capacitance	200uF
	200 microfarad
	200MFD
	200MKF
	200,000nF
Tolerance Range	+/-5%	+/-10%
Temperature Range	Min -10 C	Max +40 C
Max Approx Inductance (nH)	30nH
Max. Dissipation Factor	0.4%
Insulation Resistance	Min:1000M ohm
Application	Lasers, Particle Accelerators
	High Energy Marx Generators
	High energy physics experiments
	Pulsed magnetic field generators
Manufacturer/Supplier	Shanghai Pluspark Electronics Co.,Ltd
Phone /Whatsapp	0086 13761174539
Attn	Phyllis Hou

Exceptional Energy Storage for Critical Applications

This high voltage capacitor is engineered to provide substantial, rapid energy storage and discharge, making it ideal for pulse power, industrial, and medical applications. Its high capacitance (500 F) and voltage capacity (10 kV) ensure reliable performance even under demanding conditions, while low ESR and self-inductance reduce energy losses and overheating.

Built for Durability and Safety

Constructed with metallized polypropylene film and housed in a metal shell, the capacitor withstands tough operating environments. It is tested up to 1.5 times its rated voltage for dielectric strength, ensuring operational reliability. Panel mounting and screw terminals provide secure, efficient integration into your systems.

FAQ's of Energy Storage High Voltage Capacitor 10kV 500uF/500000nF:

Q: How should the 10kV 500uF high voltage capacitor be installed for optimal performance?

A: The capacitor is designed for panel mounting using high voltage screw terminals, which ensures both secure attachment and strong electrical contact. Proper installation includes following the manufacturer's guidelines for mounting orientation and torque, using appropriate insulation, and securing all connections to prevent movement during operation.

Q: What benefits does very low ESR and low self-inductance provide in high voltage capacitors?

A: Very low Equivalent Series Resistance (ESR) and minimal self-inductance help maximize energy efficiency by reducing internal power losses and limiting unwanted voltage spikes during fast discharge cycles. This results in more reliable performance during high surge events and less heat generation.

Q: When is it appropriate to use this capacitor in a pulse power or industrial energy storage application?

A: This capacitor is suitable when you require rapid charge/discharge cycles, high voltage endurance, and long-term reliability, such as in pulse power systems, industrial equipment, or medical devices that demand substantial, stable energy storage and quick delivery.

Q: Where is this high voltage capacitor typically utilized?

A: Typical installation sites include industrial automation systems, medical imaging devices, pulse power equipment, and energy storage arrays where high voltage and energy density are essential factors. Its robust build also suits laboratory and testing applications.

Q: What process ensures long storage life and consistent dielectric strength in this capacitor?

A: The capacitor undergoes rigorous quality controls, including dielectric strength testing at 1.5 times the rated voltage and strict manufacturing standards in line with IEC 61071. The use of metallized polypropylene film and a sealed metal cylinder prevents moisture ingress, supporting a storage life of at least 10 years at +25C without load.

Q: How does the short discharge time constant benefit system operation?

A: A short discharge time constant allows the capacitor to release stored energy extremely quickly, which is crucial for technologies requiring immediate power surges, such as pulse lasers or industrial actuators. This capacity for fast energy delivery enhances overall system response and effectiveness.

Q: What are the compliance and environmental standards of the capacitor?

A: The capacitor conforms to IEC 61071 and RoHS standards, verifying its performance for high voltage use and ensuring it is free from hazardous substances, making it environmentally and operationally safe for global markets.
