40kV 0.03uF High Voltage Capacitor

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.03uF,0.03MFD,30nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 40kV,400000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

40kV 0.03uF High Voltage Capacitor Price And Quantity

40kV 0.03uF High Voltage Capacitor Product Specifications

Temperature Range -10~+40 Celsius (oC)
Capacitance 0.03uF,0.03MFD,30nF
Rated Voltage 40kV,400000 Volt (V)
Frequency 1 Hertz (HZ)
Operating Temperature -10~+40 Celsius (oC)
Application General Purpose High Voltage Power
Capacitance Tolerance +/-10% Microfarad (F)
Product Type Polypropylene Film Capacitor
Current DC
Terminal Single-Ended

40kV 0.03uF High Voltage Capacitor Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Paypal Western Union
Supply Ability 200 Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Australia North America South America Eastern Europe Western Europe Central America Asia Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 40KV 0.03uF(30nF)
Specifications
Capacitance	0.03uF/0.03MFD/30nF
Rated Voltage	40kV/40000V.DC
Capacitance Tolerance	10%
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+40 C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11034
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:170mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'High Voltage Capacitor 1pps' category

50kV 0.15uF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance : 0.15uF,0.15MFD,150nF Product Type : Polypropylene Film Capacitor Frequency : 1 Hertz (HZ) Application : General Purpose, High Voltage, Power Operating Temperature : 10~+40 Celsius (oC) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 50000 Volt (V) Material : Film Terminal : SingleEnded

Send Inquiry

10kV 2000nF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Capacitance : 2uF,2MFD,2000nF Product Type : Polypropylene Film Capacitor Frequency : 1 Hertz (HZ) Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 10000 Volt (V) Current : DC Material : Film Terminal : SingleEnded

Send Inquiry

60kV 0.02uF HV Pulse Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance : 0.02uF,0.02MFD,20nF Product Type : Polypropylene Film Capacitor Frequency : 1 Hertz (HZ) Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 50kV,500000 Volt (V) Current : DC Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

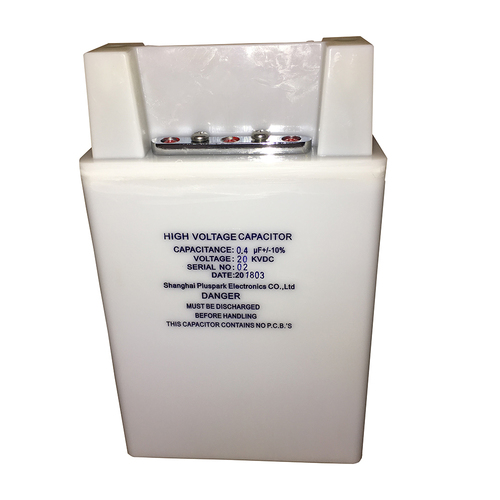

20kV 0.4uF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance : 0.4uF,0.4MFD,400nF Product Type : Polypropylene Film Capacitor Frequency : 1 Hertz (HZ) Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 20kV,200000 Volt (V) Current : DC Temperature Range : 10~+40 Celsius (oC)
