High Voltage Pulse Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Frequency 1 Hertz (HZ)
Current DC
Product Type Polypropylene Film Capacitor
Material Film
Capacitance 0.03uF,0.03MFD,30nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 60000 Volt (V)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

High Voltage Pulse Capacitor Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 20 Piece

High Voltage Pulse Capacitor Product Specifications

Material Film
Frequency 1 Hertz (HZ)
Terminal Single-Ended
Current DC
Capacitance Tolerance +/-10% Microfarad (F)
Application General Purpose Power High Voltage
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 60000 Volt (V)
Product Type Polypropylene Film Capacitor
Capacitance 0.03uF,0.03MFD,30nF

High Voltage Pulse Capacitor Trade Information

FOB Port Shanghai
Payment Terms Western Union Paypal
Supply Ability 200 Piece Per Week
Delivery Time Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Western Europe Central America Eastern Europe Middle East South America Asia North America Australia Africa
Certifications ISO9001

Product Description

Manufacturer/Supplier	Shanghai Pluspark Electronics Co.,Ltd
Product	High voltage capacitor
Rated capacitance -in uF	0.03uF,0.03MFD
-in nF	30nF
Capacitance tolerance	+/-10% (K),
Rated voltage V_R	60Kv, 60000V.DC
Max. Continuous Rep Rate	1pps
Test Voltage	1.2xU_R (U_R>60KV_DC)
Terminals	Single-ended, plastic case
Case size	62x155x310mm
Operating temperature range	-10~+40 degree C
Max .peak current	25kA
Max RMS current	25A
Design life	100,000 charge/discharge cycles

Rating of 60kVcapacitor

Product category	High Voltage Capacitor
Item	Voltage	Capacitance-uF	Capacitance -nF
High Voltage Capacitor 1PPS Pulse	60kV	0.001uF	1nF
	60kV	0.01uF	10nF
	60kV	0.02uF	20nF
	60kV	0.03uF	30nF
	60kV	0.1uF	100nF
	60kV	0.2uF	200nF
	60kV	0.25uF	250nF

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

40kV 0.3uF 300nF High Voltage Pulse Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Terminal : SingleEnded Current : DC Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 40000 Volt (V) Product Type : Polypropylene Film Capacitor Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, High Voltage, Power Capacitance : 0.3uF,0.3MFD,300nF Material : Film

Send Inquiry

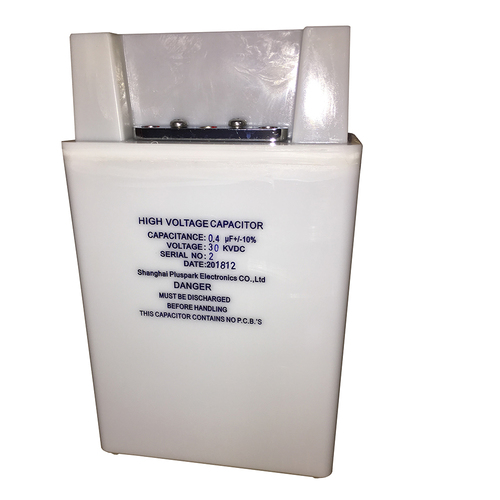

1PPS 30kV 0.4uF Pulse HV Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Terminal : SingleEnded Current : DC Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 30kV,300000 Volt (V) Product Type : Polypropylene Film Capacitor Operating Temperature : 10~+40 Celsius (oC) Application : Power, High Voltage, General Purpose Capacitance : 0.4uF,0.4MFD,400nF Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

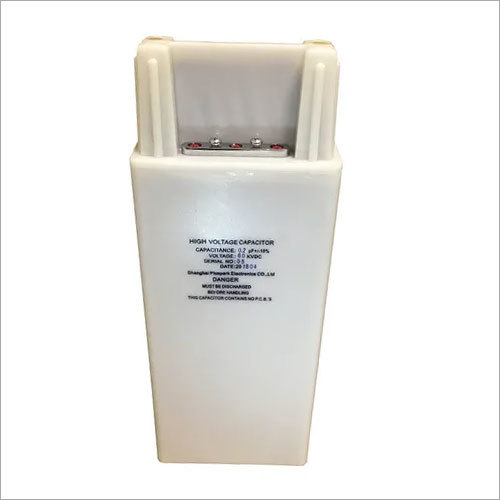

0.2uf 60kv High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Terminal : SingleEnded Current : DC Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 60000 Volt (V) Product Type : Polypropylene Film Capacitor Operating Temperature : 10~+40 Celsius (oC) Application : High Voltage, Lighting, Power Capacitance : 0.2uF,0.2MFD,200nF Material : Film
