High Voltage Pulse Discharge and DC Capacitor 45nF 40000V

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.045uF,0.045MFD,45nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 40kV,400000 Volt (V)
Capacitance Tolerance +/-5% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

High Voltage Pulse Discharge and DC Capacitor 45nF 40000V Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 10 Piece

High Voltage Pulse Discharge and DC Capacitor 45nF 40000V Product Specifications

Capacitance Tolerance +/-5% Microfarad (F)
Application Power High Voltage General Purpose
Current DC
Operating Temperature -10~+40 Celsius (oC)
Temperature Range -10~+40 Celsius (oC)
Capacitance 0.045uF,0.045MFD,45nF
Terminal Double Ended Famale Terminal are opposite ends
Product Type Polypropylene Film Capacitor
Rated Voltage 40kV,400000 Volt (V)

High Voltage Pulse Discharge and DC Capacitor 45nF 40000V Trade Information

FOB Port Shanghai
Payment Terms Western Union Paypal Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Western Europe Australia North America South America Eastern Europe Middle East Central America Asia Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE DISCHARGE AND DC CAPACITOR 40KV 0.045uF(45nF)

Specifications:

Capacitance	0.045uF/0.045MFD/45nF
Rated Voltage	40kV/40000V.DC
Capacitance Tolerance	5%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Rated Voltage Reversal	20%
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	DEF11023
Case Style	Double-Ended,Plastic Case
Dimensions	L:257mm W:154mm H:105mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pulse Discharge And DC Capacitor' category

40kV 0.062uF High Voltage Capacitor Price Range : 1.00 - 5.00 USD ($)/Piece Minimum Order Quantity : 20 Product Type : Polypropylene Film Capacitor Rated Voltage : 40000 Volt (V) Application : High Voltage, Power, General Purpose Capacitance Tolerance : +/10% Microfarad (F) Terminal : DoubleEnded Current : DC Capacitance : 0.062uF,0.062MFD,62nF Operating Temperature : 10~+40 Celsius (oC) Material : Film

Send Inquiry

High Voltage Pulse discharge and DC Capacitor 25kV 0.045uF(45nF) Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Rated Voltage : 25kV,250000 Volt (V) Application : High Voltage, Power, General Purpose Capacitance Tolerance : +/5% Microfarad (F) Terminal : Double Ended Famale Terminal are opposite ends Current : DC Capacitance : 0.045uF,0.045MFD,45nF Operating Temperature : 10~+40 Celsius (oC) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

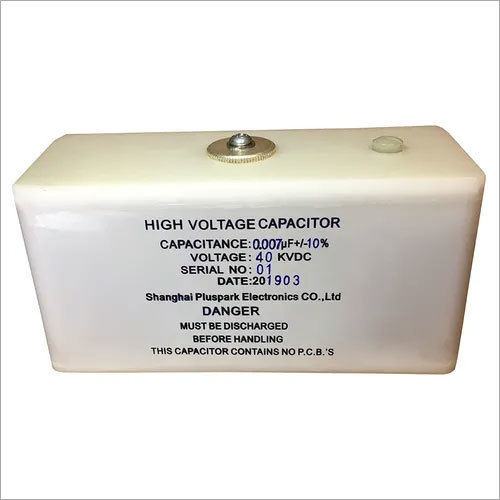

0.007uF 40kV High Voltage Pulse Discharge Capacitor Price Range : 1.00 - 2.00 USD ($)/Piece Minimum Order Quantity : 20 Product Type : Polypropylene Film Capacitor Rated Voltage : 40000 Volt (V) Application : General Purpose, High Voltage, Power Capacitance Tolerance : +/10% Microfarad (F) Terminal : DoubleEnded Current : DC Capacitance : 0.007uF,0.007MFD,7nF Operating Temperature : 10~+40 Celsius (oC) Material : Film

Send Inquiry

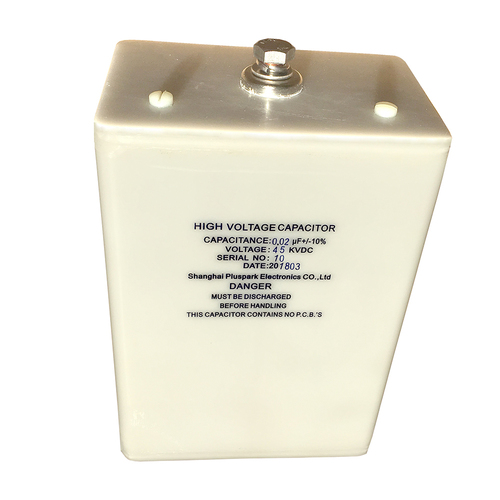

HV Discharge and DC Capacitor 45kV 0.02uF(20nF) Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Rated Voltage : 45kV,450000 Volt (V) Application : General Purpose, Power, High Voltage Capacitance Tolerance : +/5% Microfarad (F) Terminal : Double Ended Famale Terminal are opposite ends Current : DC Capacitance : 0.02uF,0.02MFD,20nF Operating Temperature : 10~+40 Celsius (oC) Temperature Range : 10~+40 Celsius (oC)
