High Votage Pulse discharge and DC Capacitor 50kV 0.01uF(10nF)

1.00 - 1.20 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.01uF,0.01MFD,10nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 50kV,500000 Volt (V)
Capacitance Tolerance +/-5% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

High Votage Pulse discharge and DC Capacitor 50kV 0.01uF(10nF) Price And Quantity

Minimum Order Quantity 10 Piece
Price Range 1.00 - 1.20 USD ($)/Piece

High Votage Pulse discharge and DC Capacitor 50kV 0.01uF(10nF) Product Specifications

Capacitance Tolerance +/-5% Microfarad (F)
Operating Temperature -10~+40 Celsius (oC)
Terminal Double Ended Famale Terminal are opposite ends
Rated Voltage 50kV,500000 Volt (V)
Temperature Range -10~+40 Celsius (oC)
Application General Purpose High Voltage Power
Current DC
Capacitance 0.01uF,0.01MFD,10nF
Product Type Polypropylene Film Capacitor

High Votage Pulse discharge and DC Capacitor 50kV 0.01uF(10nF) Trade Information

FOB Port Shanghai
Payment Terms Western Union Paypal Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Australia North America South America Eastern Europe Western Europe Middle East Africa Central America Asia
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE DISCHARGE AND DC CAPACITOR 50KV 0.01uF(10nF)
Specifications
Capacitance	0.01uF/0.01MFD/10nF
Rated Voltage	50kV/50000V.DC
Capacitance Tolerance	5%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Rated Voltage Reversal	20%
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	DEF11034
Case Style	Double-Ended,Plastic Case
Dimensions	L:105mm W:154mm H:105mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Pulse Discharge And DC Capacitor' category

High Voltage Pulse Discharge and DC Capacitor 31.5nF 45000V Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Current : DC Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/5% Microfarad (F) Terminal : Double Ended Famale Terminal are opposite ends Application : High Voltage, Power, General Purpose Capacitance : 0.0315uF,0.0315MFD,31.5nF Rated Voltage : 50kV,500000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

HV Pulse Discharge and DC Capacitor 7nF 40000V.DC Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Current : DC Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/5% Microfarad (F) Terminal : Double Ended Famale Terminal are opposite ends Application : General Purpose, Power, High Voltage Capacitance : 0.007uF,0.007MFD,7nF Rated Voltage : 40kV,400000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

10kV 0.25uF High Voltage Capacitors Price Range : 1.00 - 2.00 USD ($)/Piece Minimum Order Quantity : 10 Current : DC Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Terminal : DoubleEnded Application : General Purpose, High Voltage, Power Capacitance : 0.25uF 0.25MFD 250nF Rated Voltage : 10000 Volt (V) Operating Temperature : 10~+40 Celsius (oC)

Send Inquiry

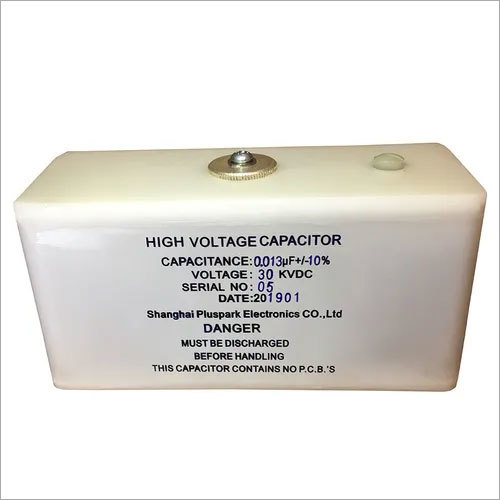

30kV 0.013uF High Voltage Pulse Discharge and DC Capacitor Minimum Order Quantity : 20 Current : DC Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Terminal : DoubleEnded Application : High Voltage, Power, General Purpose Capacitance : 0.013uF,0.013MFD,13nF Rated Voltage : 30000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Material : Film
