HV Capacitor 100kV 0.008uF Fast Pulse Capacitor 8nF 100000V

1.00 - 1.20 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.008uF,0.008MFD,8nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 100kV,1000000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HV Capacitor 100kV 0.008uF Fast Pulse Capacitor 8nF 100000V Price And Quantity

Minimum Order Quantity 10 Piece
Price Range 1.00 - 1.20 USD ($)/Piece

HV Capacitor 100kV 0.008uF Fast Pulse Capacitor 8nF 100000V Product Specifications

Application General Purpose High Voltage Power
Current DC
Product Type Polypropylene Film Capacitor
Temperature Range -10~+40 Celsius (oC)
Capacitance Tolerance +/-10% Microfarad (F)
Terminal Single-Ended
Capacitance 0.008uF,0.008MFD,8nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 100kV,1000000 Volt (V)

HV Capacitor 100kV 0.008uF Fast Pulse Capacitor 8nF 100000V Trade Information

FOB Port Shanghai
Payment Terms Western Union Paypal Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5pcs/ctn
Main Export Market(s) Australia South America Eastern Europe Western Europe Middle East Central America Asia North America
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE FAST PULSE CAPACITOR 100KV 0.008uF(8nF)
Specifications
Capacitance	0.008uF/0.008MFD/8nF
Rated Voltage	100kV/100000V.DC
Capacitance Tolerance	10%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PDE11001
Dimensions	L:146mm W:152mm H:58mm
Case Style	Double-Ended with Electrode,Plastic Case
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Fast Pulse Capacitor' category

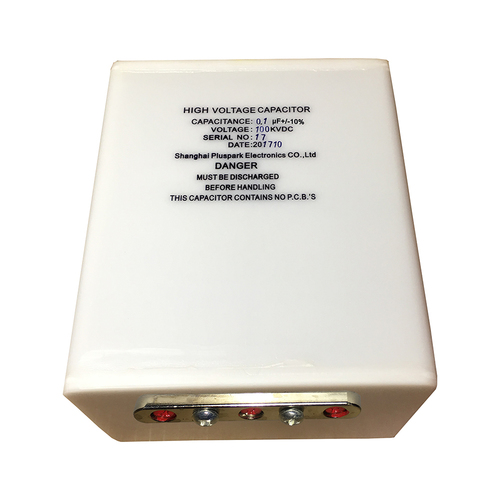

Fast Pulse Capacitor 100kV 0.1uF High Voltage Capacitor 100nF 10000V.DC Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, High Voltage, Power Capacitance : 0.1uF,0.1MFD,100nF Terminal : DooubleEnded with Electrode Rated Voltage : 100kV,1000000 Volt (V) Current : DC

Send Inquiry

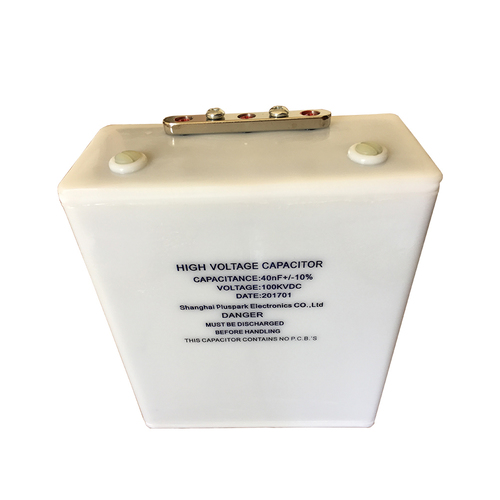

100kV 0.04uF 40nF High Voltage Capacitor Price Range : 1.00 - 5.00 USD ($)/Piece Minimum Order Quantity : 20 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, Power, High Voltage Capacitance : 0.04uF,0.04MFD,40nF Terminal : DoubleEnded with Electrode Rated Voltage : 100000 Volt (V) Current : DC Material : Film
