50kV 0.44uF HV Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.44uF,0.44MFD,440nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 50kV,500000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

50kV 0.44uF HV Capacitor Price And Quantity

Minimum Order Quantity 10 Piece
Price 1-1.2 USD ($)/Piece

50kV 0.44uF HV Capacitor Product Specifications

Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Current DC
Capacitance Tolerance +/-10% Microfarad (F)
Operating Temperature -10~+40 Celsius (oC)
Application General Purpose High Voltage Power
Capacitance 0.44uF,0.44MFD,440nF
Terminal Single-Ended
Temperature Range -10~+40 Celsius (oC)
Rated Voltage 50kV,500000 Volt (V)

50kV 0.44uF HV Capacitor Trade Information

FOB Port Shanghai
Payment Terms Paypal Telegraphic Transfer (T/T) Western Union
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Australia North America South America Eastern Europe Western Europe Middle East Central America Asia Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 50KV 0.44uF(440nF)
Specifications
Capacitance	0.44uF/0.44MFD/440nF
Rated Voltage	50kV/50000V.DC
Capacitance Tolerance	10%
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+40 C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11050
Case Style	Single-Ended Plastic Case
Dimensions	L:216mm W:72mm H:400mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

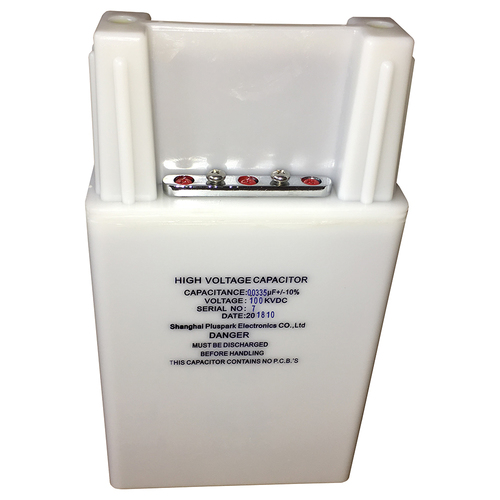

High Voltage Capacitor 100kV 0.0335uF1PPS Pulse Capacitor 33.5nF 100000V Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Capacitance : 0.0335uF,0.0335MFD,35.5nF Frequency : 1 Hertz (HZ) Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 100kV,1000000 Volt (V) Terminal : SingleEnded Application : General Purpose, Power, High Voltage Capacitance Tolerance : +/10% Microfarad (F) Current : DC Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

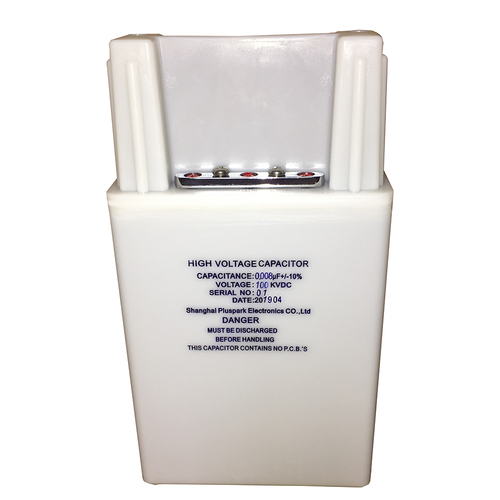

100kV 0.008uF High Voltage Pulse Capacitor Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Capacitance : 0.008uF,0.008MFD,8nF Frequency : 1 Hertz (HZ) Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 100kV,1000000 Volt (V) Terminal : SingleEnded Application : High Voltage, Power, General Purpose Capacitance Tolerance : +/10% Microfarad (F) Current : DC Temperature Range : 10~+40 Celsius (oC)
