HV Pulse Discharge and DC Capacitor 25kV 0.035uF(35nF)

1.00 - 1.20 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.035uF,0.035MFD,35nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 35kV,3500000 Volt (V)
Temperature Range -10~+40 Celsius (oC)
Terminal Double Ended Famale Terminal are opposite ends
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HV Pulse Discharge and DC Capacitor 25kV 0.035uF(35nF) Price And Quantity

Price Range 1.00 - 1.20 USD ($)/Piece
Minimum Order Quantity 10 Piece

HV Pulse Discharge and DC Capacitor 25kV 0.035uF(35nF) Product Specifications

Current DC
Operating Temperature -10~+40 Celsius (oC)
Product Type Polypropylene Film Capacitor
Application General Purpose Power High Voltage
Capacitance 0.035uF,0.035MFD,35nF
Terminal Double Ended Famale Terminal are opposite ends
Rated Voltage 35kV,3500000 Volt (V)
Temperature Range -10~+40 Celsius (oC)

HV Pulse Discharge and DC Capacitor 25kV 0.035uF(35nF) Trade Information

FOB Port Shanghai
Payment Terms Western Union Paypal Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Australia South America Eastern Europe Middle East Western Europe Central America Asia North America Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE DISCHARGE AND DC CAPACITOR 25KV 0.035uF(35nF)
Specifications
Capacitance	0.035uF/0.035MFD/35nF
Rated Voltage	25kV/25000V.DC
Capacitance Tolerance	5%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Rated Voltage Reversal	20%
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	DEF11006
Case Style	Double-Ended,Plastic Case
Dimensions	L:106mm W:152mm H:58mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Pulse Discharge And DC Capacitor' category

HV Pulse Discharge and DC Capacitor 50kV 0.007uF(7nF) Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Rated Voltage : 50kV,500000 Volt (V) Terminal : Double Ended Famale Terminal are opposite ends Capacitance Tolerance : +/5% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, High Voltage, Power Current : DC Product Type : Polypropylene Film Capacitor Capacitance : 0.007uF,0.007MFD,7nF Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

45kV 0.01uF Capacitor Price Range : 1.00 - 2.00 USD ($)/Piece Minimum Order Quantity : 20 Rated Voltage : 45000 Volt (V) Terminal : DoubleEnded Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~40 Celsius (oC) Application : General Purpose, High Voltage, Power Current : DC Product Type : Polypropylene Film Capacitor Capacitance : 0.01uF,0.01MFD,10nF Material : Film

Send Inquiry

HV Pulse discharge and DC Capacitor 10kV 0.25uF(250nF) Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Rated Voltage : 10kV,100000 Volt (V) Terminal : Double Ended Famale Terminal are opposite ends Capacitance Tolerance : +/5% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, High Voltage, Power Current : DC Product Type : Polypropylene Film Capacitor Capacitance : 0.25uF,0.25MFD,250nF Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

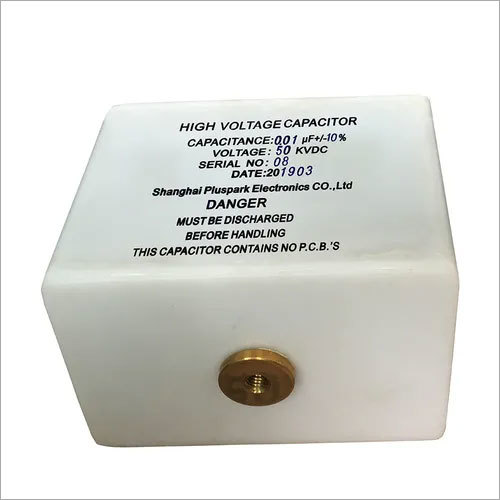

50kV 0.01uF Capacitor Minimum Order Quantity : 20 Rated Voltage : 50000 Volt (V) Terminal : DoubleEnded Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, High Voltage, Power Current : DC Product Type : Polypropylene Film Capacitor Capacitance : 0.01uF,0.01MFD,10nF Material : Film
