HV Pulse discharge and DC Capacitor 30kV 0.022uF(22nF)

1.00 - 1.20 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.022uF,0.022MFD,22nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 30kV,300000 Volt (V)
Capacitance Tolerance +/-5% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HV Pulse discharge and DC Capacitor 30kV 0.022uF(22nF) Price And Quantity

Minimum Order Quantity 10 Piece
Price Range 1.00 - 1.20 USD ($)/Piece

HV Pulse discharge and DC Capacitor 30kV 0.022uF(22nF) Product Specifications

Capacitance 0.022uF,0.022MFD,22nF
Rated Voltage 30kV,300000 Volt (V)
Capacitance Tolerance +/-5% Microfarad (F)
Current DC
Operating Temperature -10~+40 Celsius (oC)
Application High Voltage Power General Purpose
Terminal Double Ended Famale Terminal are opposite ends
Temperature Range -10~+40 Celsius (oC)
Product Type Polypropylene Film Capacitor

HV Pulse discharge and DC Capacitor 30kV 0.022uF(22nF) Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Paypal Western Union
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTMN
Main Export Market(s) Western Europe Asia Australia North America South America Eastern Europe Middle East Africa Central America
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE DISCHARGE AND DC CAPACITOR 30KV 0.022uF(22nF)
Specifications
Capacitance	0.022uF/0.022MFD/22nF
Rated Voltage	30kV/30000V.DC
Capacitance Tolerance	5%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Rated Voltage Reversal	20%
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	DEF11010
Case Style	Double-Ended,Plastic Case
Dimensions	L:106mm W:152mm H:58mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Pulse Discharge And DC Capacitor' category

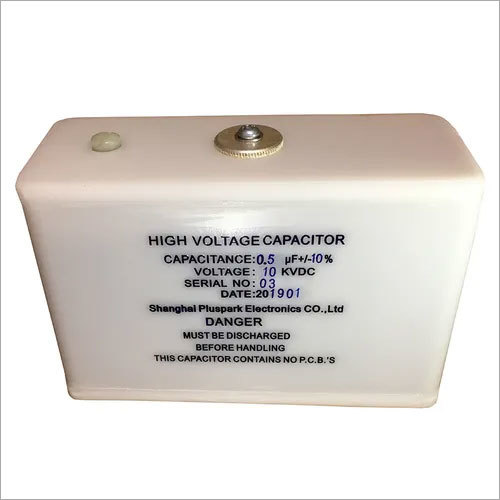

10kV 0.5uF High Voltage Capacitor Price Range : 1.00 - 2.00 USD ($)/Piece Minimum Order Quantity : 20 Application : General Purpose, High Voltage, Power Product Type : Polypropylene Film Capacitor Rated Voltage : 10000 Volt (V) Capacitance : 0.5uF,0.5MFD,500nF Operating Temperature : 10~+40 Celsius (oC) Current : DC Terminal : DoubleEnded Capacitance Tolerance : +/10% Microfarad (F) Material : Film

Send Inquiry

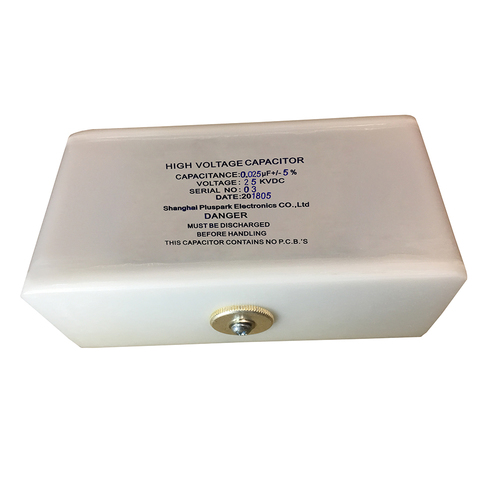

Capacitor 25kV 0.025uF,High Voltage Pulse Discharge and DC Capacitor 25nF 25000V Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : High Voltage, Power, General Purpose Product Type : Polypropylene Film Capacitor Rated Voltage : 25kV,250000 Volt (V) Capacitance : 0.025uF,0.025MFD,25nF Operating Temperature : 10~+40 Celsius (oC) Current : DC Terminal : Double Ended Famale Terminal are opposite ends Capacitance Tolerance : +/5% Microfarad (F) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

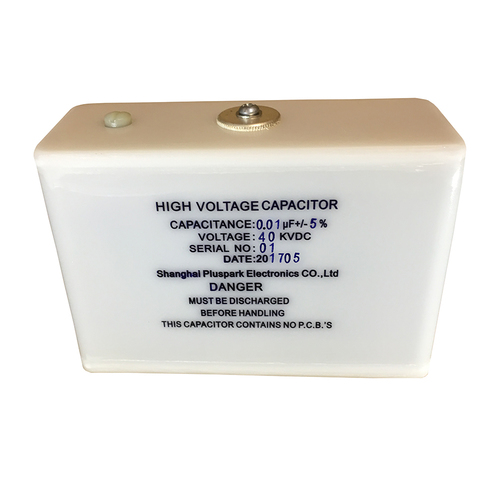

HV Pulse Discharge and DC Capacitor 40kV 0.01uF(10nF) Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Application : High Voltage, Power, General Purpose Product Type : Polypropylene Film Capacitor Rated Voltage : 40kV,400000 Volt (V) Capacitance : 0.01uF,0.01MFD,10nF Operating Temperature : 10~+40 Celsius (oC) Current : DC Terminal : Double Ended Famale Terminal are opposite ends Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

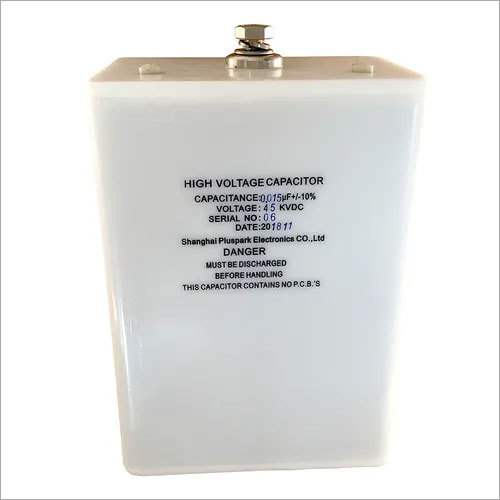

45kV 0.015uF High Voltage Capacitor Pulse Discharge and DC Capacitor Minimum Order Quantity : 20 Application : General Purpose, High Voltage, Power Product Type : Polypropylene Film Capacitor Rated Voltage : 45000 Volt (V) Capacitance : 0.015uF,0.015MFD,15nF Operating Temperature : 10~40 Celsius (oC) Current : DC Terminal : DoubleEnded Capacitance Tolerance : +/10% Microfarad (F) Material : Film
