Pulse Discharge and DC Capacitor 10kV 0.05uF,HV Capacitor 50nF 10000V

1.00 - 1.20 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.05uF,0.05MFD,50nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 10kV,100000 Volt (V)
Capacitance Tolerance +/-5% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pulse Discharge and DC Capacitor 10kV 0.05uF,HV Capacitor 50nF 10000V Price And Quantity

Minimum Order Quantity 10 Piece
Price Range 1.00 - 1.20 USD ($)/Piece

Pulse Discharge and DC Capacitor 10kV 0.05uF,HV Capacitor 50nF 10000V Product Specifications

Temperature Range -10~+40 Celsius (oC)
Terminal Double Ended Famale Terminal are opposite ends
Operating Temperature -10~+40 Celsius (oC)
Capacitance 0.05uF,0.05MFD,50nF
Rated Voltage 10kV,100000 Volt (V)
Application High Voltage Power General Purpose
Capacitance Tolerance +/-5% Microfarad (F)
Current DC
Product Type Polypropylene Film Capacitor

Pulse Discharge and DC Capacitor 10kV 0.05uF,HV Capacitor 50nF 10000V Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Western Union Paypal
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5pcs/ctn
Main Export Market(s) Western Europe Australia Central America Eastern Europe Middle East South America Asia North America Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE DISCHARGE AND DC CAPACITOR 10KV 0.05uF(50nF)
Specifications
Capacitance	0.05uF/0.05MFD/50nF
Rated Voltage	10kV/10000V.DC
Capacitance Tolerance	5%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Rated Voltage Reversal	20%
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	DEF11002
Case Style	Double-Ended,Plastic Case
Dimensions	L:56mm W:152mm H:58mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pulse Discharge And DC Capacitor' category

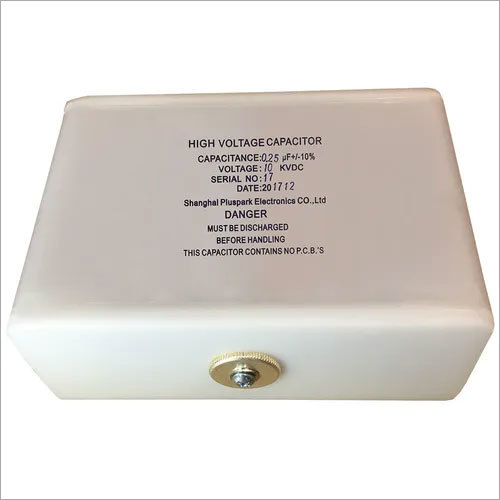

10kV 0.25uF High Voltage Capacitors Price Range : 1.00 - 2.00 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Current : DC Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 10000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, High Voltage, Power Capacitance : 0.25uF 0.25MFD 250nF Terminal : DoubleEnded

Send Inquiry

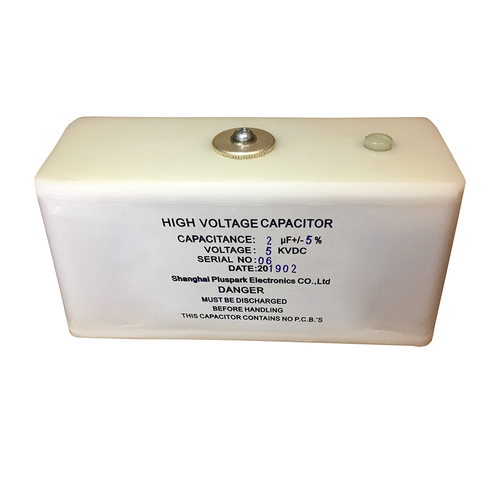

HV Discharge Pulse and DC Capacitor 2uF 5KV Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Current : DC Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 5kV,50000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, High Voltage, Power Capacitance : 2uF,2MFD,2000nF Terminal : Double Ended Famale Terminal are opposite ends

Send Inquiry

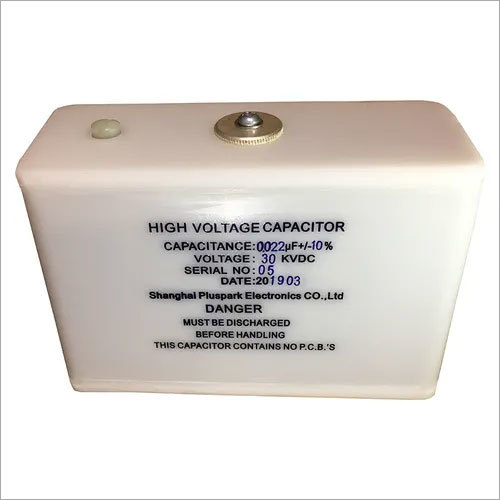

30kV 0.022uF Capacitor Minimum Order Quantity : 20 Product Type : Polypropylene Film Capacitor Current : DC Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 30000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, High Voltage, Power Capacitance : 0.022uF,0.022mfd,22nF Terminal : DoubleEnded Material : Film

Send Inquiry

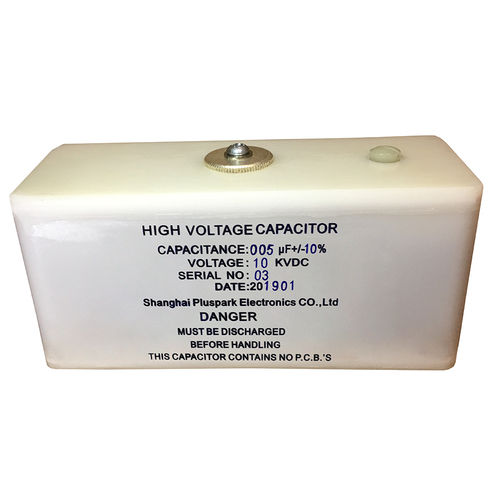

0.05uF 10kV Capacitor Minimum Order Quantity : 20 Product Type : Polypropylene Film Capacitor Current : DC Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 10000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Application : High Voltage, Power, General Purpose Capacitance : 0.05uF,0.05MFD,50nF Terminal : DoubleEnded Material : Film
