Pulse Discharge and DC Capacitor 35kV 0.03uF(30nF)

1-1.2 USD ($)/Kit

Get a Price/Quote

Product Details:

Current DC
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 35k350000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Terminal Double Ended Famale Terminal are opposite ends
Application General Purpose, High Voltage, Power
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pulse Discharge and DC Capacitor 35kV 0.03uF(30nF) Price And Quantity

Minimum Order Quantity 10 Piece
Price 1-1.2 USD ($)/Kit

Pulse Discharge and DC Capacitor 35kV 0.03uF(30nF) Product Specifications

Terminal Double Ended Famale Terminal are opposite ends
Capacitance Tolerance +/-10% Microfarad (F)
Current DC
Rated Voltage 35k350000 Volt (V)
Temperature Range -10~+40 Celsius (oC)
Operating Temperature -10~+40 Celsius (oC)
Application General Purpose, High Voltage, Power

Pulse Discharge and DC Capacitor 35kV 0.03uF(30nF) Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T), Paypal, Western Union
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5pcs/ctn
Main Export Market(s) Western Europe, Australia, North America, Eastern Europe, Middle East, Central America, Africa
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE DISCHARGE AND DC CAPACITOR 35KV 0.03uF(30nF)

Specifications:

Capacitance	0.03uF/0.03MFD/30nF
Rated Voltage	35kV/35000V.DC
Capacitance Tolerance	5%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Rated Voltage Reversal	20%
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	DEF11016
Case Style	Double-Ended,Plastic Case
Dimensions	L:102mm W:152mm H:58mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pulse Discharge And DC Capacitor' category

40kV 0.062uF High Voltage Capacitor Minimum Order Quantity : 20 Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 40000 Volt (V) Current : DC Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Terminal : DoubleEnded Capacitance : 0.062uF,0.062MFD,62nF Material : Film

Send Inquiry

Pulse Discharge and DC Capacitor 20nF 40000V Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Application : General Purpose, High Voltage, Power Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 40kV,400000 Volt (V) Current : DC Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/5% Microfarad (F) Terminal : Double Ended Famale Terminal are opposite ends Capacitance : 0.02uF,0.02MFD,20nF Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

HV Discharge and DC Capacitor 45kV 0.02uF(20nF) Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Application : General Purpose, Power, High Voltage Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 45kV,450000 Volt (V) Current : DC Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/5% Microfarad (F) Terminal : Double Ended Famale Terminal are opposite ends Capacitance : 0.02uF,0.02MFD,20nF Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

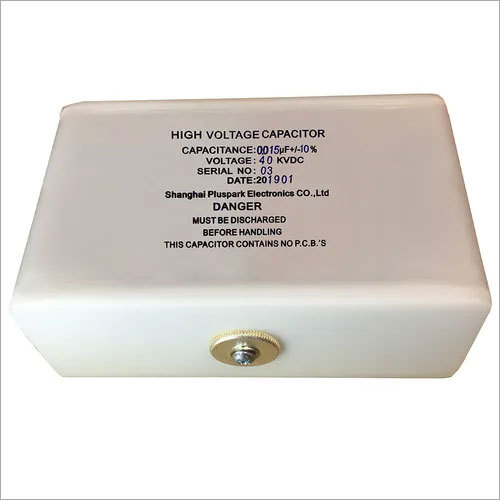

HV Capacitor 40kV 0.015uF,Pulsed Discharge and DC Capacitor 15nF 40000V Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 40kV,400000 Volt (V) Current : DC Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/5% Microfarad (F) Terminal : Double Ended Famale Terminal are opposite ends Temperature Range : 10~+40 Celsius (oC)
