60kV 0.01uF High Voltage Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Frequency 1 Hertz (HZ)
Current DC
Product Type Polypropylene Film Capacitor
Material Film
Capacitance 0.01uF,0.01MFD,10nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 60000 Volt (V)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

60kV 0.01uF High Voltage Capacitor Price And Quantity

Minimum Order Quantity 20 Piece
Price 1-1.2 USD ($)/Piece

60kV 0.01uF High Voltage Capacitor Product Specifications

Frequency 1 Hertz (HZ)
Current DC
Application General Purpose High Voltage Power
Material Film
Terminal Single Ended
Operating Temperature -10~+40 Celsius (oC)
Capacitance 0.01uF,0.01MFD,10nF
Rated Voltage 60000 Volt (V)
Product Type Polypropylene Film Capacitor
Capacitance Tolerance +/-10% Microfarad (F)

60kV 0.01uF High Voltage Capacitor Trade Information

FOB Port Shanghai
Payment Terms Western Union Paypal Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Western Europe Asia Australia North America Eastern Europe Middle East Central America South America Africa
Main Domestic Market All India
Certifications iso9001

Product Description

Manufacturer/Supplier	Shanghai Pluspark Electronics Co.,Ltd
Product	High voltage capacitor
Rated capacitance -in uF	0.01uF,0.01MFD
-in nF	10nF
Capacitance tolerance	+/-10% (K),
Rated voltage V_R	60Kv, 60000V.DC
Max. Continuous Rep Rate	1pps
Test Voltage	1.2xU_R (U_R>60KV_DC)
Terminals	Single-ended, plastic case
Case size	58x152x250mm
Operating temperature range	-10~+40 degree C
Max .peak current	25kA
Max RMS current	25A
Design life	100,000 charge/discharge cycles

Rating of 60kVcapacitor

Product category	High Voltage Capacitor
Item	Voltage	Capacitance-uF	Capacitance -nF
HV Pulse Capacitor	60kV	0.001uF	1nF
HV Pulse Capacitor	60kV	0.01uF	10nF
HV Pulse Capacitor	60kV	0.02uF	20nF
HV Pulse Capacitor	60kV	0.03uF	30nF
HV Pulse Capacitor	60kV	0.1uF	100nF
HV Pulse Capacitor	60kV	0.2uF	200nF
HV Pulse Capacitor	60kV	0.25uF	250nF

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Capacitance : 0.01uF,0.01MFD,10nF Rated Voltage : 100000 Volt (V) Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Terminal : SingleEnded Frequency : 1 Hertz (HZ) Current : DC Material : Film

Send Inquiry

30kV 0.016uF HV Pulse Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Capacitance : 0.016uF,0.016MFD,16nF Rated Voltage : 100kV,1000000 Volt (V) Application : General Purpose, High Voltage, Power Operating Temperature : 10~+40 Celsius (oC) Terminal : SingleEnded Frequency : 1 Hertz (HZ) Current : DC Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

0.1uF 80kV High Voltage Pulse Capacitor Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Capacitance : 0.1uF,0.1MFD,100nF Rated Voltage : 80kV,800000 Volt (V) Application : General Purpose, High Voltage, Power Operating Temperature : 10~+40 Celsius (oC) Terminal : SingleEnded Frequency : 1 Hertz (HZ) Current : DC Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

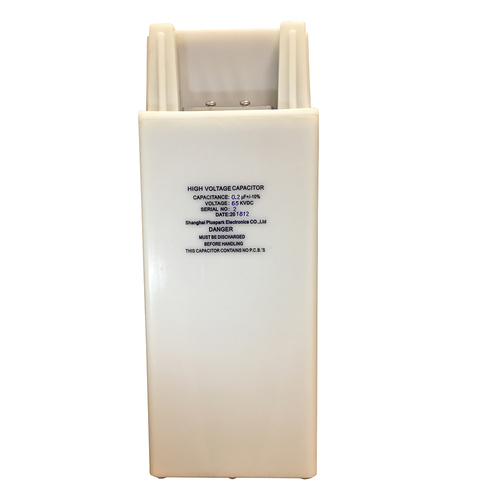

High Voltage Capacitor 65kV 0.2uF(200nF) 1PPS Pulse Plastic Case Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Capacitance : 0.2uF,0.2MFD,200nF Rated Voltage : 65kV,650000 Volt (V) Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Terminal : SingleEnded Frequency : 1 Hertz (HZ) Current : DC Temperature Range : 10~+40 Celsius (oC)
