30kV 0.6uF HV Pulse Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Frequency 1 Hertz (HZ)
Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.6uF,0.6MFD,600nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 30kV,300000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

30kV 0.6uF HV Pulse Capacitor Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 10 Piece

30kV 0.6uF HV Pulse Capacitor Product Specifications

Temperature Range -10~+40 Celsius (oC)
Operating Temperature -10~+40 Celsius (oC)
Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.6uF,0.6MFD,600nF
Rated Voltage 30kV,300000 Volt (V)
Application High Voltage Power General Purpose
Frequency 1 Hertz (HZ)
Terminal Single-Ended
Capacitance Tolerance +/-10% Microfarad (F)

30kV 0.6uF HV Pulse Capacitor Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Western Union Paypal
Supply Ability 200 Piece Per Week
Delivery Time 2 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN,10Pcs/CTN
Main Export Market(s) Western Europe Australia North America Eastern Europe Middle East Africa Central America South America Asia
Main Domestic Market All India
Certifications ISO9001:2015 ,MSDS,RoHs

Product Description

HIGH VOLTAGE PULSE CAPACITOR 30KV 0.6uF(600nF)
Specifications
Capacitance	0.6uF/0.6MFD/600nF
Rated Voltage	30kV/30000V.DC
Capacitance Tolerance	5%,10%
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+40 C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11030
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:285mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'High Voltage Capacitor 1pps' category

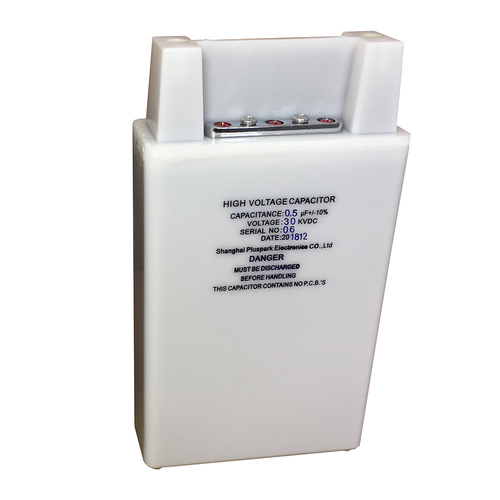

30kV 0.5uF High Voltage Pulse Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 30kV,300000 Volt (V) Current : DC Terminal : SingleEnded Application : General Purpose, High Voltage, Power Product Type : Polypropylene Film Capacitor Capacitance : 0.5uF,0.5MFD,500nF,0.5microfarad Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

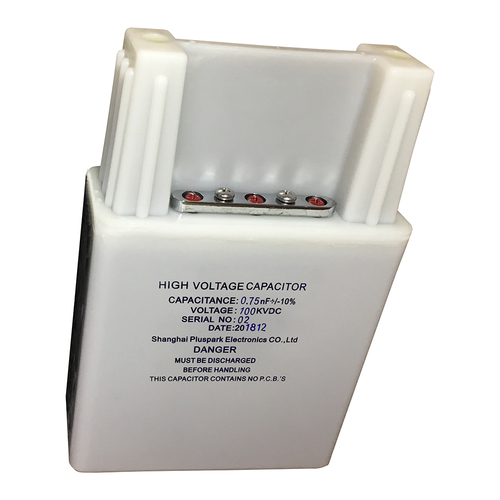

HV Pulse 1pps Capacitor 100kV 0.75nF Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 100kV,1000000 Volt (V) Current : DC Terminal : SingleEnded Application : Power, High Voltage, General Purpose Product Type : Polypropylene Film Capacitor Capacitance : 0.75nF Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Temperature Range : 10~+40 Celsius (oC)
