60kV 0.02uF HV Pulse Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.02uF,0.02MFD,20nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 50kV,500000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

60kV 0.02uF HV Pulse Capacitor Price And Quantity

Minimum Order Quantity 10 Piece
Price 1-1.2 USD ($)/Piece

60kV 0.02uF HV Pulse Capacitor Product Specifications

Capacitance 0.02uF,0.02MFD,20nF
Application High Voltage Power General Purpose
Frequency 1 Hertz (HZ)
Rated Voltage 50kV,500000 Volt (V)
Temperature Range -10~+40 Celsius (oC)
Operating Temperature -10~+40 Celsius (oC)
Product Type Polypropylene Film Capacitor
Capacitance Tolerance +/-10% Microfarad (F)
Current DC

60kV 0.02uF HV Pulse Capacitor Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Paypal Western Union
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Western Europe Australia North America Eastern Europe Middle East Africa Central America South America Asia
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 60KV 0.02uF(20nF)
Specifications
Capacitance	0.02uF/0.02MFD/20nF
Rated Voltage	60kV/60000V.DC
Capacitance Tolerance	10%
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+40 C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Film Capacitor
Part Number	PSE11054
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:310mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'High Voltage Capacitor 1pps' category

50kV 0.2uF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 5 Capacitance : 0.2uF,0.2MFD,200nF Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 50Kv, 50000V Volt (V) Operating Temperature : 10~+40 Celsius (oC) Application : High Voltage, Power, General Purpose Terminal : SingleEnded Current : DC Frequency : 1 Hertz (HZ) Material : Film

Send Inquiry

40kV 0.06uF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance : 0.06uF,0.06MFD,60nF Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 40kV,400000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Application : General Purpose, Power, High Voltage Terminal : SingleEnded Current : DC Frequency : 1 Hertz (HZ) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

1PPS 30kV 0.4uF Pulse HV Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance : 0.4uF,0.4MFD,400nF Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 30kV,300000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Application : Power, High Voltage, General Purpose Terminal : SingleEnded Current : DC Frequency : 1 Hertz (HZ) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

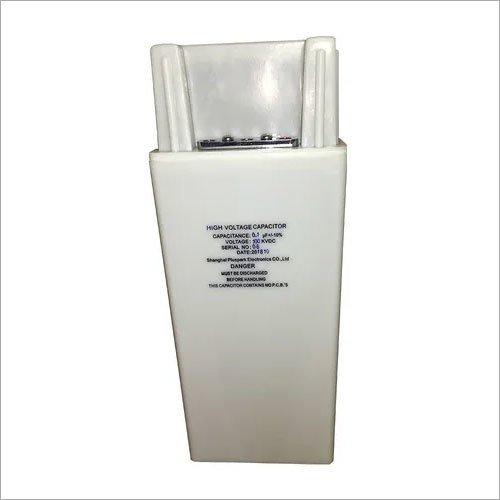

100kV 0.1uF High Voltage Capacitor Price : 1-2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance : 100nF,0.1uF,0.1MFD Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 100000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Application : Power, General Purpose, High Voltage Terminal : SingleEnded Frequency : 1 Hertz (HZ) Material : Film
