High Voltage Discharge and DC Capacitor 45kV 0.015uF(15nF)

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.015uF,0.015MFD,15nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 45kV,450000 Volt (V)
Capacitance Tolerance +/-5% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

High Voltage Discharge and DC Capacitor 45kV 0.015uF(15nF) Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 10 Piece

High Voltage Discharge and DC Capacitor 45kV 0.015uF(15nF) Product Specifications

Temperature Range -10~+40 Celsius (oC)
Capacitance 0.015uF,0.015MFD,15nF
Operating Temperature -10~+40 Celsius (oC)
Application General Purpose High Voltage Power
Capacitance Tolerance +/-5% Microfarad (F)
Terminal Double Ended Famale Terminal are opposite ends
Product Type Polypropylene Film Capacitor
Current DC
Rated Voltage 45kV,450000 Volt (V)

High Voltage Discharge and DC Capacitor 45kV 0.015uF(15nF) Trade Information

FOB Port Shanghai
Payment Terms Western Union Paypal Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Australia North America South America Eastern Europe Western Europe Middle East Africa Central America Asia
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE DISCHARGE AND DC CAPACITOR 45KV 0.015uF(15nF)

Specifications:

Capacitance	0.015uF/0.015MFD/15nF
Rated Voltage	45kV/45000V.DC
Capacitance Tolerance	5%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Rated Voltage Reversal	20%
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	DEF11027
Case Style	Double-Ended,Plastic Case
Dimensions	L:216mm W:154mm H:105mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Pulse Discharge And DC Capacitor' category

Pulse Discharge and DC Capacitor 10kV 0.05uF,HV Capacitor 50nF 10000V Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Capacitance : 0.05uF,0.05MFD,50nF Rated Voltage : 10kV,100000 Volt (V) Terminal : Double Ended Famale Terminal are opposite ends Product Type : Polypropylene Film Capacitor Current : DC Capacitance Tolerance : +/5% Microfarad (F) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

35kV 0.02uF HV Capacitor Price Range : 1.00 - 2.00 USD ($)/Piece Minimum Order Quantity : 20 Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Capacitance : 0.02uF,0.02MFD,20nF Rated Voltage : 35000 Volt (V) Terminal : DoubleEnded Product Type : Polypropylene Film Capacitor Current : DC Capacitance Tolerance : +/10% Microfarad (F) Material : Film

Send Inquiry

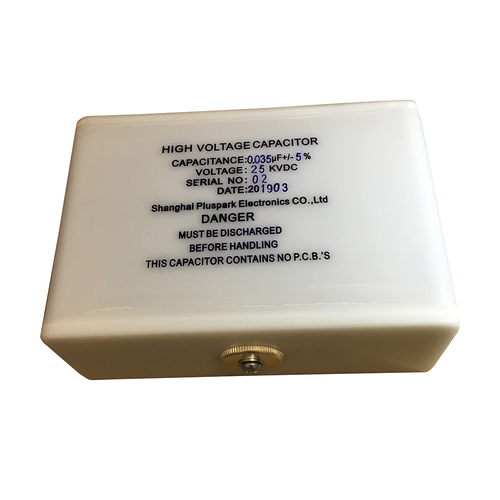

HV Pulse Discharge and DC Capacitor 25kV 0.035uF(35nF) Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : General Purpose, Power, High Voltage Operating Temperature : 10~+40 Celsius (oC) Capacitance : 0.035uF,0.035MFD,35nF Rated Voltage : 35kV,3500000 Volt (V) Terminal : Double Ended Famale Terminal are opposite ends Product Type : Polypropylene Film Capacitor Current : DC Temperature Range : 10~+40 Celsius (oC)
