30000V 500nF High Voltage Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.5uF,0.5MFD,500nF
Operating Temperature -10~+40 Celsius (oC)
Capacitance Tolerance +/-10% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

30000V 500nF High Voltage Capacitor Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 10 Piece

30000V 500nF High Voltage Capacitor Product Specifications

Application General Purpose High Voltage Power
Capacitance Tolerance +/-10% Microfarad (F)
Current DC
Temperature Range -10~+40 Celsius (oC)
Operating Temperature -10~+40 Celsius (oC)
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.5uF,0.5MFD,500nF

30000V 500nF High Voltage Capacitor Trade Information

FOB Port Shanghai
Payment Terms Paypal Western Union Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Western Europe Australia North America Eastern Europe Middle East Central America South America Asia Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 30KV 0.5uF(500nF)
Specifications
Capacitance	0.5uF/0.5MFD/500nF
Rated Voltage	30kV/30000V.DC
Capacitance Tolerance	5%,10%
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+40 C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11027
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:248mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

100nf 50kv Condensador High Voltage Capacitor Price Range : 1.00 - 5.00 USD ($)/Piece Minimum Order Quantity : 20 Capacitance Tolerance : +/10% Microfarad (F) Frequency : 1 Hertz (HZ) Rated Voltage : 50kV Volt (V) Application : General Purpose, High Voltage, Power Operating Temperature : 10 to +40 Celsius (oC) Product Type : Polypropylene Film Capacitor Capacitance : 0.1uF,0.1MFD,100nF Temperature Range : 10 to +40 Celsius (oC) Terminal : SingleEnded Size : 58x152x250mm Material : Film

Send Inquiry

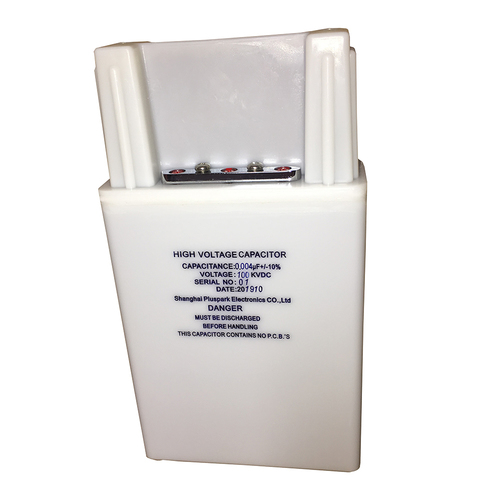

100kV 0.004uF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Capacitance Tolerance : +/10% Microfarad (F) Frequency : 1 Hertz (HZ) Rated Voltage : 100kV,1000000 Volt (V) Application : General Purpose, Power Operating Temperature : 10~+40 Celsius (oC) Product Type : Polypropylene Film Capacitor Capacitance : 0.004uF,0.004MFD,4nF Temperature Range : 10~+40 Celsius (oC) Terminal : SingleEnded Current : DC
