HV Fast Pulse Capacitor 100kV 0.035uF(35nF) Plastic Case Capacitor

1.00 - 1.20 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.035uF,0.035MFD,.35nF
Application General Purpose Lighting High Voltage
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HV Fast Pulse Capacitor 100kV 0.035uF(35nF) Plastic Case Capacitor Price And Quantity

Minimum Order Quantity 10 Piece
Price Range 1.00 - 1.20 USD ($)/Piece

HV Fast Pulse Capacitor 100kV 0.035uF(35nF) Plastic Case Capacitor Product Specifications

Current DC
Product Type Polypropylene Film Capacitor
Application General Purpose Lighting High Voltage
Capacitance 0.035uF,0.035MFD,.35nF

HV Fast Pulse Capacitor 100kV 0.035uF(35nF) Plastic Case Capacitor Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Paypal Western Union
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) South America Western Europe Central America Asia Eastern Europe North America Australia Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE FAST PULSE CAPACITOR 100KV 0.035uF(35nF)
Specifications
Capacitance	0.035uF/0.035MFD/35nF
Rated Voltage	100kV/100000V.DC
Capacitance Tolerance	10%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PDE11004
Dimensions	L:191mm W:152mm H:70mm
Case Style	Double-Ended with Electrode,Plastic Case
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Fast Pulse Capacitor' category

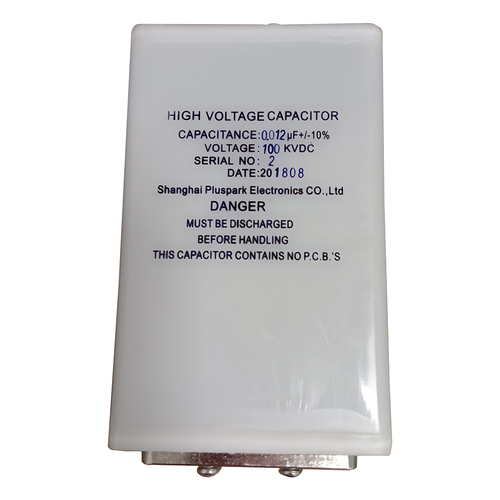

Fast Pulse Capacitor 100kV 0.012uF HV Capacitor 12nF 100kV Plastic Case Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : General Purpose, Power, High Voltage Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 100kV,1000000 Volt (V) Current : DC Terminal : SingleEnded Capacitance : 0.012uF,0.012MFD,12nF Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Temperature Range : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ)

Send Inquiry

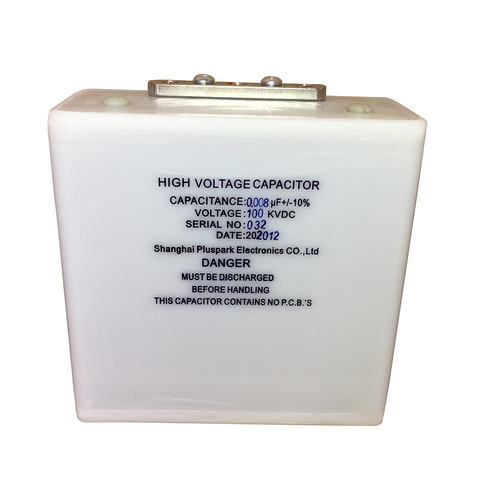

HV Capacitor 100kV 0.008uF Fast Pulse Capacitor 8nF 100000V Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : General Purpose, High Voltage, Power Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 100kV,1000000 Volt (V) Current : DC Terminal : SingleEnded Capacitance : 0.008uF,0.008MFD,8nF Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

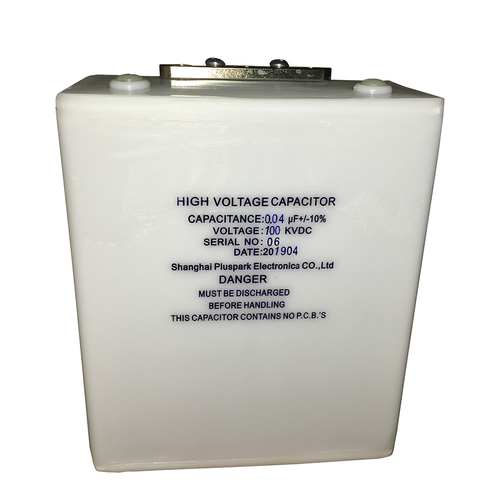

High Voltage Fast Pulse Capacitor 100kV 0.04uF(40nF) Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : High Voltage, Power, General Purpose Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 100kV,1000000 Volt (V) Current : DC Terminal : DooubleEnded with Electrode Capacitance : 0.04uF,0.04MFD,40nF Product Type : Polypropylene Film Capacitor Temperature Range : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ)

Send Inquiry

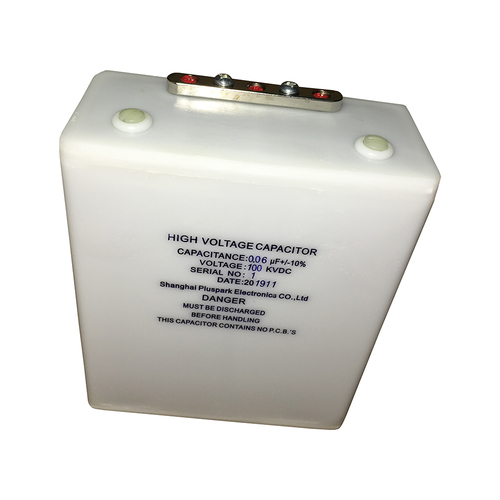

Fast Pulse High Voltage Capacitor 100kV 0.06uF(60nF) Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : General Purpose, High Voltage, Power Operating Temperature : 10~+40 Celsius (oC) Rated Voltage : 100kV,1000000 Volt (V) Current : DC Terminal : DooubleEnded with Electrode Capacitance : 0.06uF,0.06MFD,60nF Product Type : Polypropylene Film Capacitor Capacitance Tolerance : +/10% Microfarad (F) Temperature Range : 10~+40 Celsius (oC)
