HV Pulse Discharge and DC Capacitor 40kV 0.062uF(62nF)

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.062uF,0.062MFD,62nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 40kV,400000 Volt (V)
Capacitance Tolerance +/-5% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HV Pulse Discharge and DC Capacitor 40kV 0.062uF(62nF) Price And Quantity

Minimum Order Quantity 10 Piece
Price 1-1.2 USD ($)/Piece

HV Pulse Discharge and DC Capacitor 40kV 0.062uF(62nF) Product Specifications

Temperature Range -10~+40 Celsius (oC)
Capacitance Tolerance +/-5% Microfarad (F)
Capacitance 0.062uF,0.062MFD,62nF
Operating Temperature -10~+40 Celsius (oC)
Current DC
Product Type Polypropylene Film Capacitor
Application General Purpose, High Voltage, Power
Terminal Double Ended Famale Terminal are opposite ends
Rated Voltage 40kV,400000 Volt (V)

HV Pulse Discharge and DC Capacitor 40kV 0.062uF(62nF) Trade Information

FOB Port Shanghai
Payment Terms Paypal, Western Union, Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Western Europe, Australia, North America, South America, Eastern Europe, Middle East, Central America, Asia, Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE DISCHARGE AND DC CAPACITOR 40KV 0.062uF(62nF)

Specifications:

Capacitance	0.062uF/0.062MFD/62nF
Rated Voltage	40kV/40000V.DC
Capacitance Tolerance	5%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Rated Voltage Reversal	20%
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	DEF11025
Case Style	Double-Ended,Plastic Case
Dimensions	L:257mm W:154mm H:105mm

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pulse Discharge And DC Capacitor' category

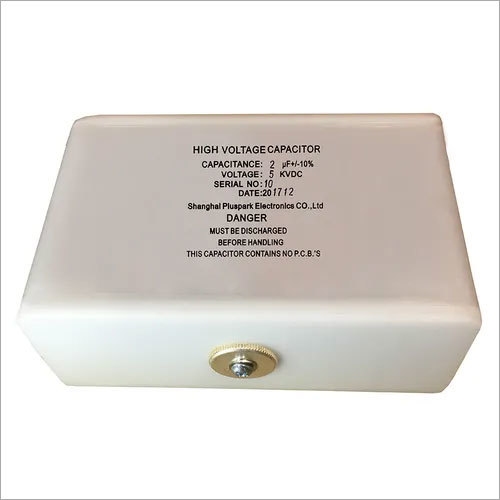

HV Discharge Pulse and DC Capacitor 2uF 5KV Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Current : DC Application : General Purpose, High Voltage, Power Rated Voltage : 5kV,50000 Volt (V) Capacitance : 2uF,2MFD,2000nF Operating Temperature : 10~+40 Celsius (oC) Terminal : Double Ended Famale Terminal are opposite ends Temperature Range : 10~+40 Celsius (oC) Capacitance Tolerance : +/10% Microfarad (F)

Send Inquiry

40kV 0.06uF High Voltage Capacitor Price Range : 1.00 - 2.00 USD ($)/Piece Minimum Order Quantity : 20 Product Type : Polypropylene Film Capacitor Current : DC Application : General Purpose, High Voltage, Power Rated Voltage : 40000 Volt (V) Capacitance : 0.06uF,0.06MFD,60nF Operating Temperature : 10~+40 Celsius (oC) Terminal : DoubleEnded Capacitance Tolerance : +/10% Microfarad (F)

Send Inquiry

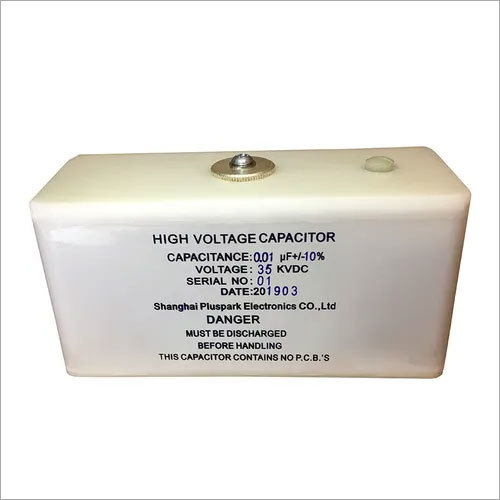

HV Pulse Discharge and DC Capacitor 35kV 0.015uF(15nF),Plastic Case Capacitors Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Product Type : Polypropylene Film Capacitor Current : DC Application : General Purpose, High Voltage, Power Rated Voltage : 35kV,35000 Volt (V) Capacitance : 0.015uF,0.015MFD,15nF Operating Temperature : 10~+40 Celsius (oC) Terminal : Double Ended Famale Terminal are opposite ends Temperature Range : 10~+40 Celsius (oC) Capacitance Tolerance : +/5% Picofarad (pF)
