100kV 0.004uF High Voltage Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.004uF,0.004MFD,4nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 100kV,1000000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

100kV 0.004uF High Voltage Capacitor Price And Quantity

Minimum Order Quantity 10 Piece
Price 1-1.2 USD ($)/Piece

100kV 0.004uF High Voltage Capacitor Product Specifications

Application General Purpose Power
Capacitance Tolerance +/-10% Microfarad (F)
Frequency 1 Hertz (HZ)
Capacitance 0.004uF,0.004MFD,4nF
Temperature Range -10~+40 Celsius (oC)
Product Type Polypropylene Film Capacitor
Terminal Single-Ended
Rated Voltage 100kV,1000000 Volt (V)
Operating Temperature -10~+40 Celsius (oC)
Current DC

100kV 0.004uF High Voltage Capacitor Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Western Union Paypal
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Africa South America Western Europe Middle East Central America Asia Eastern Europe North America Australia
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 100KV 0.004uF(4nF)
Specifications
Capacitance	0.004uF/0.004MFD/4nF
Rated Voltage	100kV/100000V.DC
Capacitance Tolerance	+10%,-10%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Film Capacitor
Part Number	PSE11067
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:260mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'High Voltage Capacitor 1pps' category

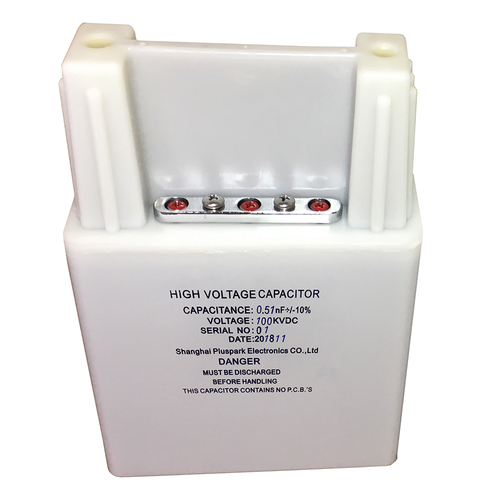

HV Pulse Capacitor 100kV 0.51nF Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 100kV,1000000 Volt (V) Current : DC Operating Temperature : 10~+40 Celsius (oC) Terminal : SingleEnded Capacitance : 0.51nF,510pF Application : General Purpose, Power, High Voltage Product Type : Polypropylene Film Capacitor Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

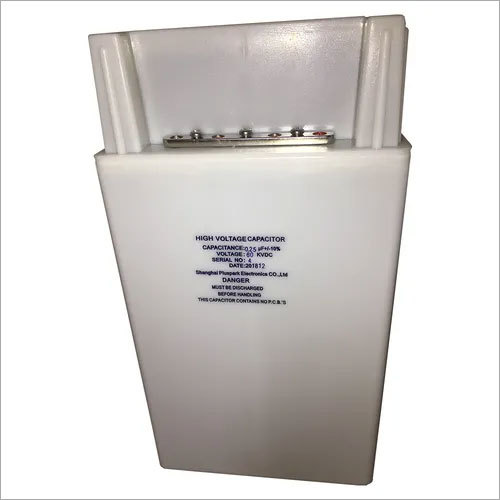

0.25uF 60kV ESWL High Voltage Capacitor Price Range : 1.00 - 5.00 USD ($)/Piece Minimum Order Quantity : 20 Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 60000 Volt (V) Current : DC Operating Temperature : 10~+40 Celsius (oC) Terminal : SingleEnded Capacitance : 0.25uF,0.25MFD,250nF Application : High Voltage, Power, General Purpose Product Type : Polypropylene Film Capacitor Material : Film

Send Inquiry

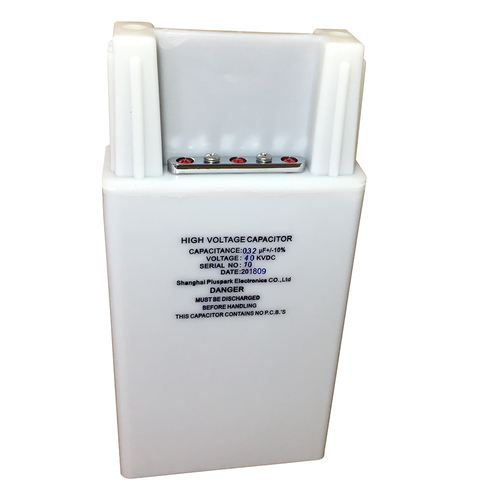

0.32uF 40kV HV Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 40kV,400000 Volt (V) Current : DC Operating Temperature : 10~+40 Celsius (oC) Terminal : SingleEnded Capacitance : 0.32uF,0.32MFD,320nF Application : High Voltage, Power, General Purpose Product Type : Polypropylene Film Capacitor Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

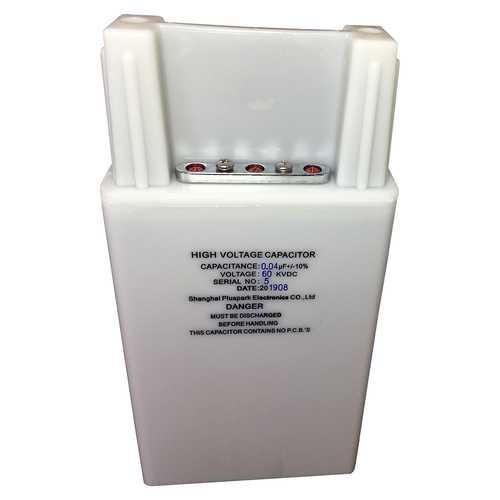

High Voltage Pulse 1pps Capacitor 60kV 0.04uF(40nF) Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Rated Voltage : 50kV,500000 Volt (V) Current : DC Operating Temperature : 10~+40 Celsius (oC) Terminal : SingleEnded Capacitance : 0.04uF,0.04MFD,40nF Application : General Purpose, High Voltage, Power Product Type : Polypropylene Film Capacitor Temperature Range : 10~+40 Celsius (oC)
