HV Capacitor 0.01uF 80kV 1PPS Pulse

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.01uF,0.01MFD,10nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 80kV,800000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HV Capacitor 0.01uF 80kV 1PPS Pulse Price And Quantity

Minimum Order Quantity 10 Piece
Price 1-1.2 USD ($)/Piece

HV Capacitor 0.01uF 80kV 1PPS Pulse Product Specifications

Current DC
Product Type Polypropylene Film Capacitor
Frequency 1 Hertz (HZ)
Operating Temperature -10~+40 Celsius (oC)
Terminal Single-Ended
Capacitance 0.01uF,0.01MFD,10nF
Temperature Range -10~+40 Celsius (oC)
Rated Voltage 80kV,800000 Volt (V)
Application General Purpose, Lighting, High Voltage
Capacitance Tolerance +/-10% Microfarad (F)

HV Capacitor 0.01uF 80kV 1PPS Pulse Trade Information

FOB Port Shanghai
Payment Terms Western Union, Paypal, Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Australia, Western Europe, Middle East, Central America, South America, Asia, Eastern Europe, North America, Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 80KV 0.01uF(10nF)
Specifications
Capacitance	0.01uF/0.01MFD/10nF
Rated Voltage	80kV/80000V.DC
Capacitance Tolerance	10%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Max. Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11063
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:260mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

50kV 0.44uF HV Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Current : DC Capacitance Tolerance : +/10% Microfarad (F) Application : General Purpose, High Voltage, Power Capacitance : 0.44uF,0.44MFD,440nF Product Type : Polypropylene Film Capacitor Terminal : SingleEnded Rated Voltage : 50kV,500000 Volt (V) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

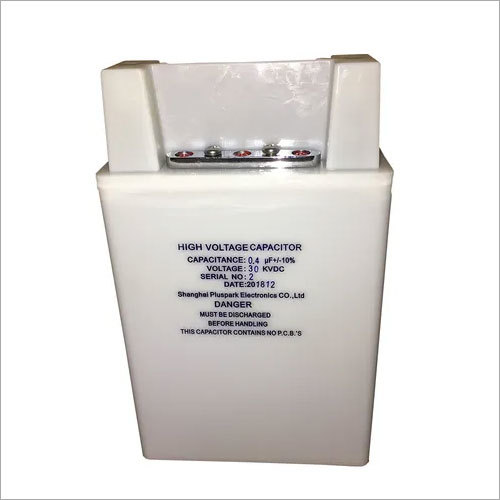

1PPS 30kV 0.4uF Pulse HV Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Current : DC Capacitance Tolerance : +/10% Microfarad (F) Application : Power, High Voltage, General Purpose Capacitance : 0.4uF,0.4MFD,400nF Product Type : Polypropylene Film Capacitor Terminal : SingleEnded Rated Voltage : 30kV,300000 Volt (V) Temperature Range : 10~+40 Celsius (oC)
