20kV 0.6uF HV Capacitor

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Product Type Polypropylene Film Capacitor
Capacitance 0.6uF,0.6MFD,600nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 20kV,200000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Application High Voltage Power
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

20kV 0.6uF HV Capacitor Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 10 Piece

20kV 0.6uF HV Capacitor Product Specifications

Capacitance 0.6uF,0.6MFD,600nF
Application High Voltage Power
Product Type Polypropylene Film Capacitor
Capacitance Tolerance +/-10% Microfarad (F)
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 20kV,200000 Volt (V)
Temperature Range -10~+40 Celsius (oC)

20kV 0.6uF HV Capacitor Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Paypal Western Union
Supply Ability 200 Piece Per Week
Delivery Time 8-12 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5pcs/ctn
Main Export Market(s) Western Europe Australia North America South America Eastern Europe Middle East Africa Asia Central America
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 20KV 0.6uF(600nF)
Specifications
Capacitance	0.6uF/0.6MFD/600nF
Rated Voltage	20kV/20000V.DC
Capacitance Tolerance	10%
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	+40 C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11016
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:285mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

0.32uF 40kV HV Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Terminal : SingleEnded Application : High Voltage, Power, General Purpose Capacitance : 0.32uF,0.32MFD,320nF Current : DC Product Type : Polypropylene Film Capacitor Rated Voltage : 40kV,400000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

High Voltage Pulse 1pps Capacitor 60kV 0.04uF(40nF) Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Terminal : SingleEnded Application : General Purpose, High Voltage, Power Capacitance : 0.04uF,0.04MFD,40nF Current : DC Product Type : Polypropylene Film Capacitor Rated Voltage : 50kV,500000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

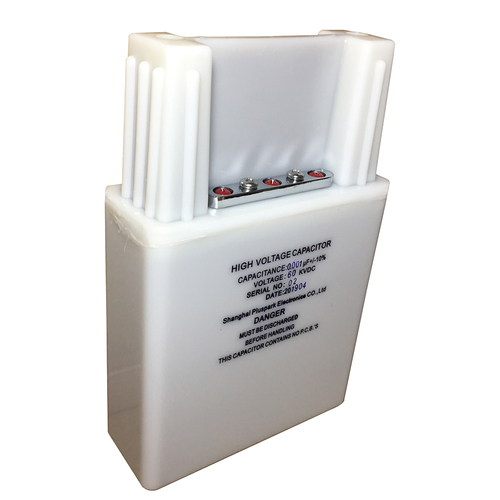

60kV 0.001uF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Terminal : SingleEnded Application : General Purpose, High Voltage, Power Capacitance : 0.001uF,0.001MFD,1nF Current : DC Product Type : Polypropylene Film Capacitor Rated Voltage : 50kV,500000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

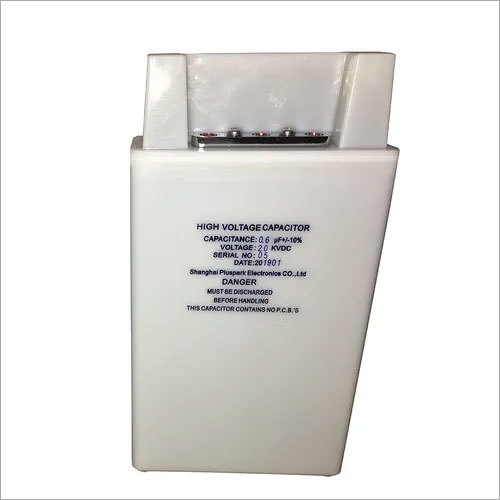

20kV 600nF 1PPS High Voltage Pulse Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Terminal : SingleEnded Application : General Purpose, High Voltage, Power Capacitance : 0.6uF,0.6MFD,600nF Current : DC Product Type : Polypropylene Film Capacitor Rated Voltage : 20000 Volt (V) Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Capacitance Tolerance : +/10% Microfarad (F) Material : Film
