HV Pulse Capacitor 100kV 0.05uF(50nF)

1.00 - 1.20 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.05uF,0.05MFD,50nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 100kV,1000000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HV Pulse Capacitor 100kV 0.05uF(50nF) Price And Quantity

Price Range 1.00 - 1.20 USD ($)/Piece
Minimum Order Quantity 10 Piece

HV Pulse Capacitor 100kV 0.05uF(50nF) Product Specifications

Temperature Range -10~+40 Celsius (oC)
Current DC
Capacitance 0.05uF,0.05MFD,50nF
Rated Voltage 100kV,1000000 Volt (V)
Operating Temperature -10~+40 Celsius (oC)
Capacitance Tolerance +/-10% Microfarad (F)
Frequency 1 Hertz (HZ)
Terminal Single-Ended
Application General Purpose High Voltage Power
Product Type Polypropylene Film Capacitor

HV Pulse Capacitor 100kV 0.05uF(50nF) Trade Information

FOB Port Shanghai
Payment Terms Western Union Paypal Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Australia North America Eastern Europe Western Europe Central America South America Asia Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 100KV 0.05uF(50nF)
Specifications
Capacitance	0.05uF/0.05MF /50nF
Rated Voltage	100kV/100000V.DC
Capacitance Tolerance	10%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Max.Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	PSE11073
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:310mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'High Voltage Capacitor 1pps' category

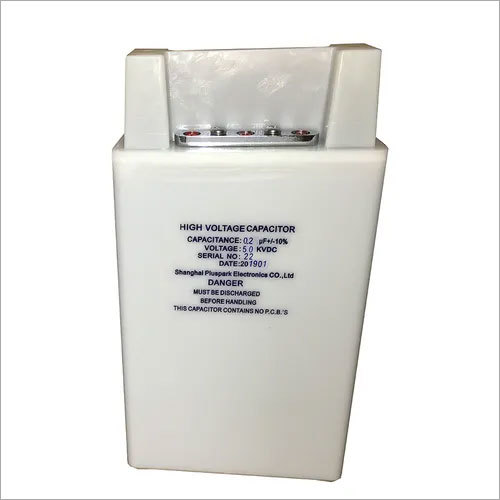

50kV 0.2uF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 5 Terminal : SingleEnded Application : High Voltage, Power, General Purpose Current : DC Capacitance : 0.2uF,0.2MFD,200nF Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Rated Voltage : 50Kv, 50000V Volt (V) Product Type : Polypropylene Film Capacitor Material : Film

Send Inquiry

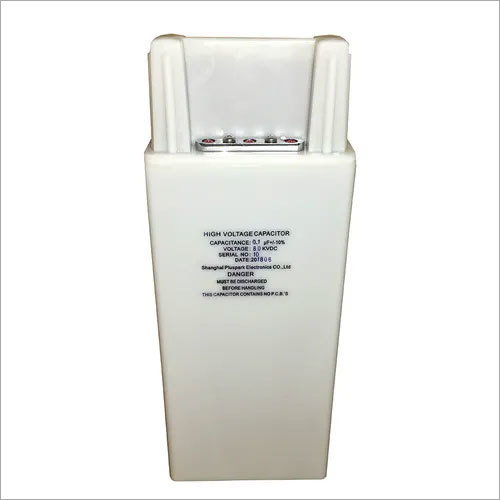

80kV 100nF High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 20 Terminal : SingleEnded,Plastic Case Application : General Purpose, High Voltage, Power Current : DC Capacitance : 0.1uF,0.1MFD,100nF Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Rated Voltage : 80000 Volt (V) Product Type : Polypropylene Film Capacitor Material : Film

Send Inquiry

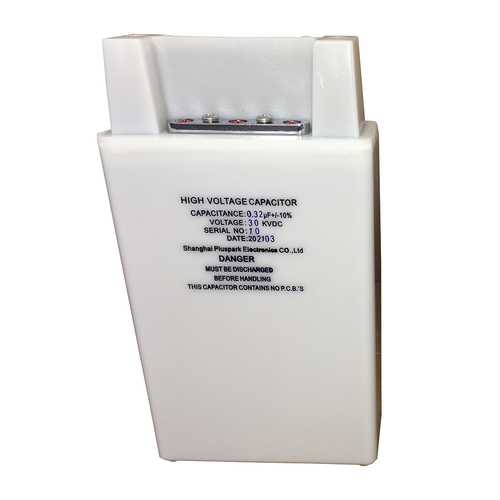

0.3uF 30kV High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Terminal : SingleEnded Application : Power, High Voltage, General Purpose Current : DC Capacitance : 0.5uF,0.5MFD,500nF Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Frequency : 1 Hertz (HZ) Rated Voltage : 30kV,300000 Volt (V) Product Type : Polypropylene Film Capacitor Temperature Range : 10~+40 Celsius (oC)
