HV Capacitor 35kV 0.01uF

1-1.2 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Product Type Polypropylene Film Capacitor
Capacitance 0.01uF,0.01MFD,10nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 35kV,350000 Volt (V)
Capacitance Tolerance +/-5% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HV Capacitor 35kV 0.01uF Price And Quantity

Price 1-1.2 USD ($)/Piece
Minimum Order Quantity 10 Piece

HV Capacitor 35kV 0.01uF Product Specifications

Capacitance 0.01uF,0.01MFD,10nF
Rated Voltage 35kV,350000 Volt (V)
Capacitance Tolerance +/-5% Microfarad (F)
Temperature Range -10~+40 Celsius (oC)
Application General Purpose High Voltage Power
Operating Temperature -10~+40 Celsius (oC)
Current DC
Product Type Polypropylene Film Capacitor

HV Capacitor 35kV 0.01uF Trade Information

FOB Port Shanghai
Payment Terms Paypal Western Union Telegraphic Transfer (T/T)
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Western Europe Australia North America Eastern Europe Middle East Central America South America Asia Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE DISCHARGE AND DC CAPACITOR 35KV 0.01uF(10nF)

Specifications:

Capacitance	0.01uF/0.01MFD/10nF
Rated Voltage	35kV/35000V.DC
Capacitance Tolerance	5%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Rated Voltage Reversal	20%
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Pulse Capacitor
Part Number	DEF11013
Case Style	Double-Ended,Plastic Case
Dimensions	L:79mm W:152mm H:58mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pulse Discharge And DC Capacitor' category

HV Capacitor 50kV 0.0125uF,High Voltage Pulse discharge and DC Capacitor 12.5nF 50kV Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : General Purpose, High Voltage, Power Product Type : Polypropylene Film Capacitor Current : DC Terminal : Double Ended Famale Terminal are opposite ends Rated Voltage : 50kV,500000 Volt (V) Capacitance : 0.0125uF,0.0125MFD,12.5nF Capacitance Tolerance : +/5% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

HV Discharge Pulse and DC Capacitor 2uF 5KV Price Range : 1.00 - 1.20 USD ($)/Piece Minimum Order Quantity : 10 Application : General Purpose, High Voltage, Power Product Type : Polypropylene Film Capacitor Current : DC Terminal : Double Ended Famale Terminal are opposite ends Rated Voltage : 5kV,50000 Volt (V) Capacitance : 2uF,2MFD,2000nF Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Temperature Range : 10~+40 Celsius (oC)

Send Inquiry

30kV 0.01uF High Voltage Capacitor Price : 1-800 USD ($)/Piece Minimum Order Quantity : 20 Application : High Voltage, Power, General Purpose Product Type : Polypropylene Film Capacitor Current : DC Terminal : DoubleEnded Rated Voltage : 30000 Volt (V) Capacitance : 0.01uF,0.01MFD,10nF Capacitance Tolerance : +/10% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Material : Film

Send Inquiry

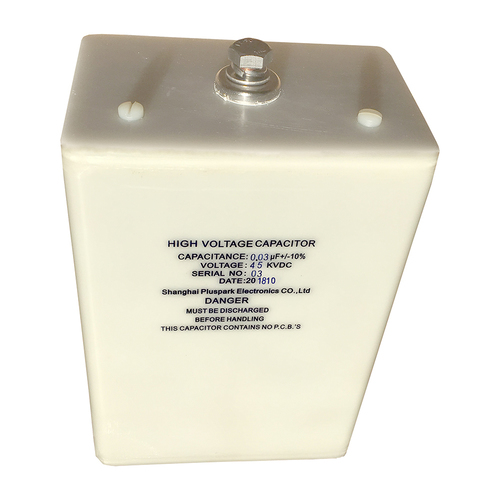

High Voltage Capacitor 45kV 0.03uF Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Application : Power, High Voltage, General Purpose Product Type : Polypropylene Film Capacitor Current : DC Terminal : Double Ended Famale Terminal are opposite ends Rated Voltage : 45kV,450000 Volt (V) Capacitance : 0.03uF,0.03MFD,30nF Capacitance Tolerance : +/5% Microfarad (F) Operating Temperature : 10~+40 Celsius (oC) Temperature Range : 10~+40 Celsius (oC)
