HV Pulse 1pps Capacitor 100kV 0.75nF

1.00 - 1.20 USD ($)/Piece

Get a Price/Quote

Product Details:

Current DC
Frequency 1 Hertz (HZ)
Product Type Polypropylene Film Capacitor
Capacitance 0.75nF
Operating Temperature -10~+40 Celsius (oC)
Rated Voltage 100kV,1000000 Volt (V)
Capacitance Tolerance +/-10% Microfarad (F)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HV Pulse 1pps Capacitor 100kV 0.75nF Price And Quantity

Minimum Order Quantity 10 Piece
Price Range 1.00 - 1.20 USD ($)/Piece

HV Pulse 1pps Capacitor 100kV 0.75nF Product Specifications

Terminal Single-Ended
Application Power High Voltage General Purpose
Frequency 1 Hertz (HZ)
Capacitance 0.75nF
Rated Voltage 100kV,1000000 Volt (V)
Product Type Polypropylene Film Capacitor
Operating Temperature -10~+40 Celsius (oC)
Capacitance Tolerance +/-10% Microfarad (F)
Current DC
Temperature Range -10~+40 Celsius (oC)

HV Pulse 1pps Capacitor 100kV 0.75nF Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T) Paypal Western Union
Supply Ability 200 Piece Per Week
Delivery Time 4-6 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details 5PCS/CTN
Main Export Market(s) Western Europe Australia North America Eastern Europe Middle East Central America South America Asia Africa
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

HIGH VOLTAGE PULSE CAPACITOR 100KV 750pF
Specifications
Capacitance	750pF
Rated Voltage	100kV/100000V.DC
Capacitance Tolerance	+10%,-10%
Minimum Operating Temperature	-10C
Maximum Operating Temperature	+40C
Max. Continuous Rep Rate	1pps
MAX Peak Current	25KA
MAX RMS Current	25A
Product Category	Film Capacitor
Part Number	PSE11066
Case Style	Single-Ended Plastic Case
Dimensions	L:152mm W:58mm H:260mm
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd
Contact US
Phone/Whatsapp	+86 137 6117 4539
Skype	Phyllis.Hou

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'High Voltage Capacitor 1pps' category

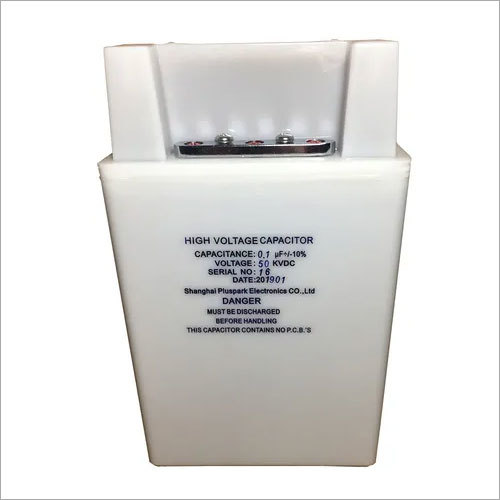

100nf 50kv Condensador High Voltage Capacitor Price Range : 1.00 - 5.00 USD ($)/Piece Minimum Order Quantity : 20 Capacitance Tolerance : +/10% Microfarad (F) Application : General Purpose, High Voltage, Power Operating Temperature : 10 to +40 Celsius (oC) Capacitance : 0.1uF,0.1MFD,100nF Product Type : Polypropylene Film Capacitor Frequency : 1 Hertz (HZ) Rated Voltage : 50kV Volt (V) Temperature Range : 10 to +40 Celsius (oC) Terminal : SingleEnded Material : Film

Send Inquiry

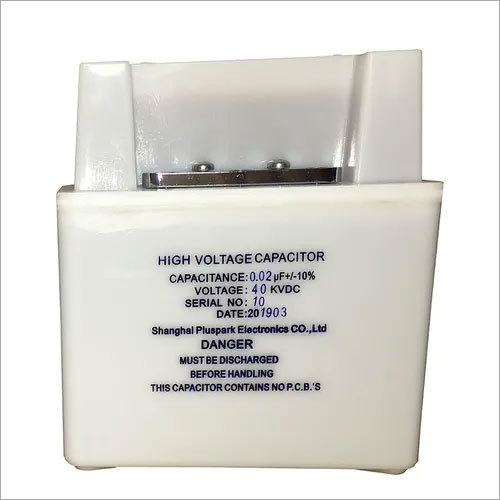

40kV 20nF HV 1PPS Pulse Capacitor Price Range : 1.00 - 5.00 USD ($)/Piece Minimum Order Quantity : 20 Capacitance Tolerance : +/10% Microfarad (F) Application : General Purpose, Power, High Voltage Operating Temperature : 10~+40 Celsius (oC) Capacitance : 0.02uF,0.02MFD,20nF Product Type : Polypropylene Film Capacitor Frequency : 1 Hertz (HZ) Rated Voltage : 40000 Volt (V) Current : DC Terminal : SingleEnded Material : Film

Send Inquiry

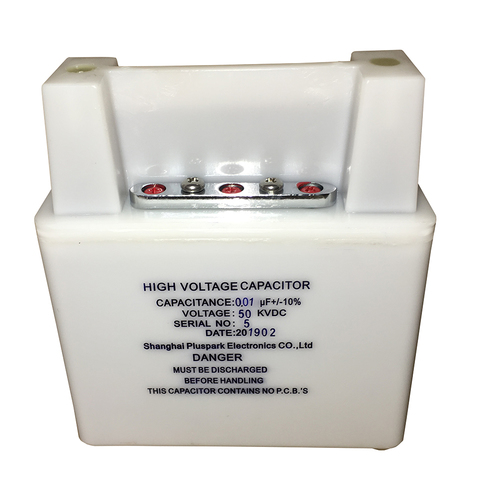

0.01uF 50kV 1PPS Pulse High Voltage Capacitor Price : 1-1.2 USD ($)/Piece Minimum Order Quantity : 10 Capacitance Tolerance : +/10% Microfarad (F) Application : High Voltage, General Purpose, Power Operating Temperature : 10~+40 Celsius (oC) Capacitance : 0.01uF,0.01MFD,10nF Product Type : Polypropylene Film Capacitor Frequency : 1 Hertz (HZ) Rated Voltage : 50kV,500000 Volt (V) Current : DC Temperature Range : 10~+40 Celsius (oC) Terminal : SingleEnded
